GLS-1L

Magnetic Proximity Sensor


Magnetic type, Square type, Sensing distance 15 mm, Pre-wired models (1 m)

Sensing head size 50 mm x 14 mm x 14 mm
Type Square type, Magnetic type
Sensing distance 15 mm

Item list of GLS

  • Ratings/Performance
Sensing head size50 mm x 14 mm x 14 mm
TypeSquare type, Magnetic type
Sensing distance15 mm
Response frequency20 Hz max.
Ambient temperature (Operating)-20 to 60 ℃
Ambient temperature (Storage)-20 to 60 ℃
Ambient humidity (Operating)35 to 85%
Ambient humidity (Storage)35 to 85%
Dielectric strengthBetween each terminals and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 300 m/s2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP62
Connection methodPre-wired models (1 m)
MaterialSensor: ABS
Magnet: ABS
  • Dimensions

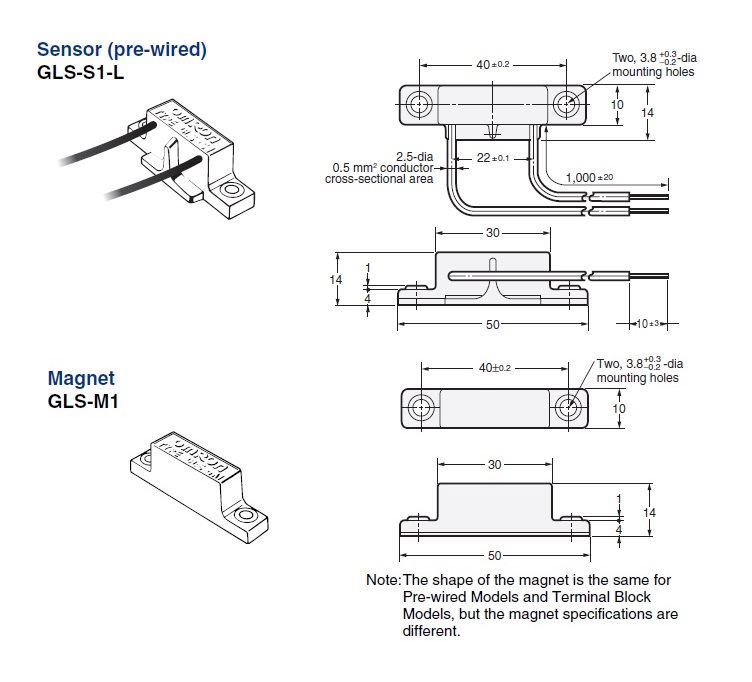

Dimensions

  • Characteristic chart

Sensing range

Series

Magnetic Proximity Sensor

GLS
