TL-LY50 1M

Long-distance Proximity Sensor


Long-distance Proximity Sensor, Column type, Flat-surface mounting, Sensing distance: 50 mm, AC 2-wire, NO, Pre-wired model, 1 m

Sensing head size 85 dia.
Type Cylinder type
Power source AC 2-wire models
Sensing distance 50 mm ±10%
Setting distance 0 to 40 mm
Operation mode NO

Item list of TL-LP / LY

  • Ratings/Performance
Sensing head size85 dia.
TypeCylinder type
Power sourceAC 2-wire models
Sensing distance50 mm ±10%
Setting distance0 to 40 mm
Differential distance10% max. of sensing distance
Sensing objectFerrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing objectIron 100 x 100 x 1 mm
Response time25 ms max.
Power supply voltage100 to 220 VAC
Operating voltage range90 to 250 VAC
Control output (Switching capacity)10 to 200 mA
IndicatorOperation indicator (red)
Operation modeNO
Ambient temperature (Operating)-25 to 70 ℃
Ambient temperature (Storage)-25 to 70 ℃
Ambient humidity (Operating)35 to 95 %
Ambient humidity (Storage)35 to 95 %
Temperature influence±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
Voltage influence±2% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistanceBetween charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strengthBetween charged parts and the case: 2,000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 1000 m/s2 10 times each in X, Y, and Z directions
Degree of protectionIEC: IP67
Connection methodPre-wired models (1 m)
WeightPackage: Approx. 1400 g
MaterialCase: Aluminum diecast
Sensing surface: Polyester
AccessoriesInstruction manual
  • Dimensions

Dimensions

  • Output circuit

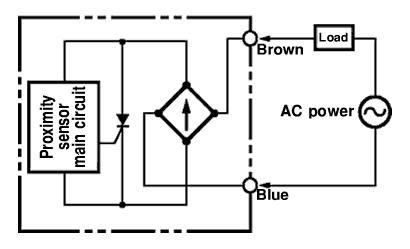

Output circuit

Timing chart

  • Mutual interference

Mutual interference

A: 1000 mm min., B: 700 mm min.

  • Effects of surrounding metals

Effects of surrounding metals

A: 70 mm min., B: 150 mm min., C: 70 mm min.

  • Characteristic chart

Sensing distance vs. size and material of sensing object

Sensing range

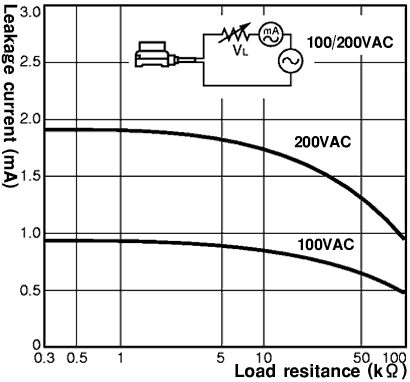

Leakage current

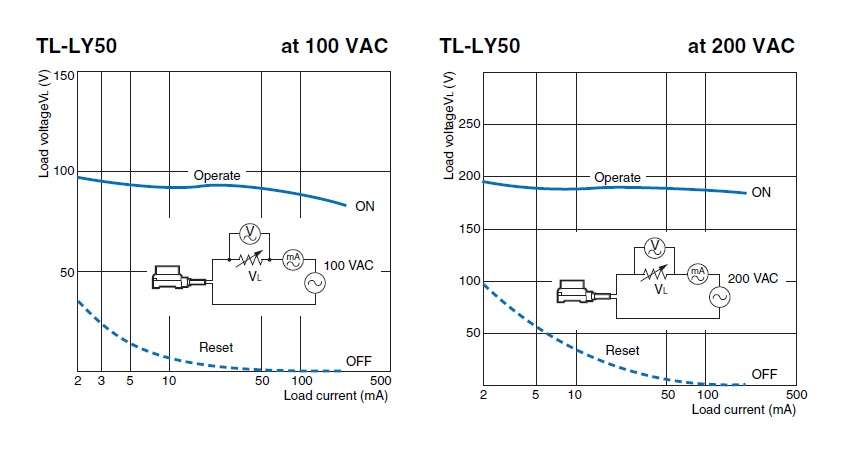

Residual voltage
