GlobalEE-SY671
Reflective Photomicrosensor with Sensitivity Adjuster (Non-modulated)
Photomicrosensor, with sensitivity adjuster, Horizontal type, Reflective type, Sensing distance: 1 to 5 mm, , Dark-ON/Light-ON (selectable), NPN output, Connector model
| Type |
Horizontal type |
|---|---|
| Luminous method |
Non-modulated |
| Sensing method |
Reflective |
| Sensing distance |
White paper 15 x 15 mm (Reflection factor: 90%): 1 to 5 mm |
| Control output (Output type) |
NPN open collector output |
| Operation mode |
Dark-ON/Light-ON (selectable) |
| Connection method |
Connector type |
- Ratings/Performance
As of July 25, 2024
| Type | Horizontal type | |
|---|---|---|
| Luminous method | Non-modulated | |
| Sensing method | Reflective | |
| Sensing distance | White paper 15 x 15 mm (Reflection factor: 90%): 1 to 5 mm | |
| Operation mode | Dark-ON/Light-ON (selectable) | |
| Standard sensing object | Transparent or opaque, 15 x 15 mm min. | |
| Differential distance elements | Sensing distance of 3 mm, horizontally: 0.5 mm | |
| Light source （Peak wavelength） | GaAs infrared LED (940 nm) | |
| Indicator | Light indicator (red) | |
| Power supply voltage | 5 to 24 VDC ±10% ripple (p-p) 10 % max. | |
| Current consumption | 40 mA | |
| Control output | Output type | NPN open collector output | Load power supply voltage | 5 to 24 VDC | Load curren | 100 mA max. | Residual voltage | at 100 mA load current: 0.8 V max. at 40 mA load current: 0.4 V max. |
| Response frequency elements | 50 Hz min. Average value: 500 Hz | |
| Illumination on the surface receiver | Fluorescent light: 1500 lx max. | |
| Ambient temperature | Operating: -25 to 55 ℃ Storage: -30 to 80 ℃ | |
| Ambient humidity | Operating: 5 to 85 % Storage: 5 to 95 % | |
| Vibration resistance | Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) | |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | |
| Degree of protection | IP50 | |
| Connection method | Connector type (Direct soldering possible) | |
| Weight | Approx. 3.5 g (including screwdriver for adjustment) | |
| Material | Case: Polybutylene terephthalate (PBT) Emitter/Receiver: Polycarbonate (PC) | |
| Accessories | Adjustment Driver | |
As of July 25, 2024

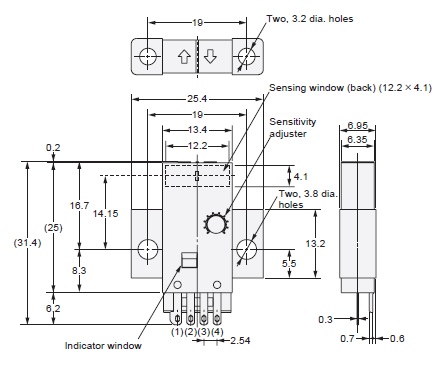

- Dimensions
As of July 25, 2024
Terminal array
As of July 25, 2024
- I/O Circuit diagram
As of July 25, 2024

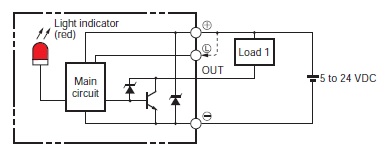

Output circuit

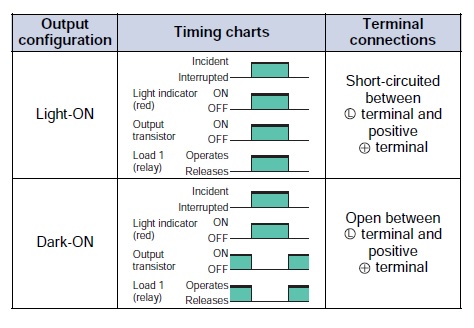

Timing chart
As of July 25, 2024

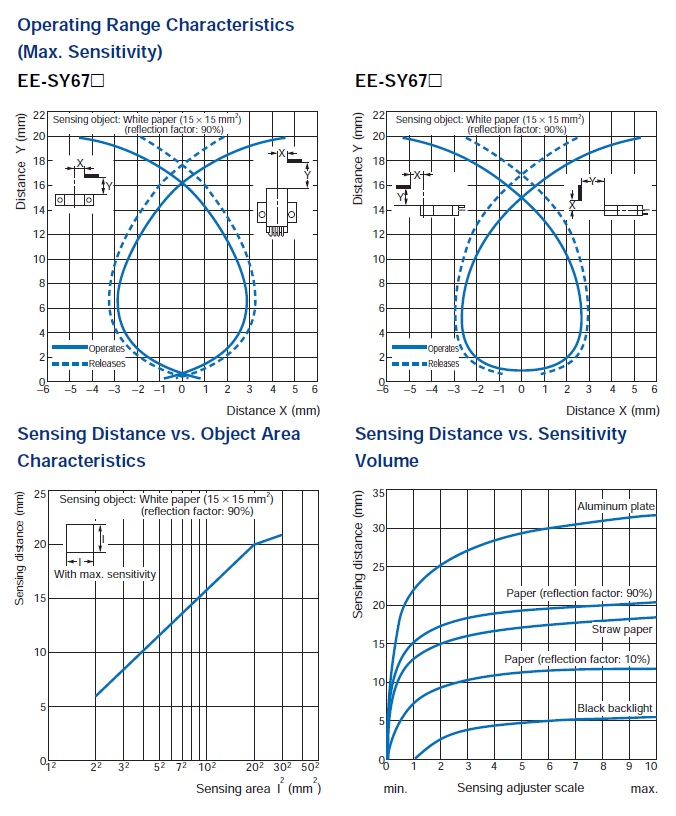

- Engineering data (Reference value)
As of July 25, 2024
As of July 25, 2024
