GlobalG3R-IDZR1SN-1 DC12-24
I/O Solid State Relays
Low-speed response speed, Input: 12 to 24 VDC, Output: 4 to 32 VDC, Load current: 0.1 to 100 mA, Plug-in terminal
| Product classification |
Relay compatible Low-speed response speed |
|---|---|
| Operating indicator |
Equipped |
| Rated voltage |
12 to 24 VDC |
| Rated load voltage |
4 to 32 VDC |
| Load current |
0.1 to 100 mA |
| Terminal structure |
Plug-in terminal |
- Ratings / Performance
As of April 14, 2021
| Product classification | Relay compatible Low-speed response speed | |
|---|---|---|
| Isolation method | Photocoupler | |
| Operating indicator | Equipped | |
| Terminal structure | Plug-in terminal | |
| Mounting | Socket | |
| Input | Rated voltage | 12 to 24 VDC | Operating voltage range | 6.6 to 32 VDC | Input current | 8 mA max. | Operate voltage | 6.6 VDC max. | Release voltage | 3.6 VDC min. |
| Output | Rated load voltage | 4 to 32 VDC | Load current | 0.1 to 100 mA |
| Operate time | 15 ms max. |
|---|---|
| Release time | 15 ms max. |
| Output ON voltage drop | 1.6 V max. |
| Leakage current | 5 µA max. |
| Insulation resistance | Between input and output: 100 MΩ min. |
| Dielectric strength | Between input and output: 4000 VAC 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance | 1000 m/s2 |
| Ambient temperature (Operating) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85% RH |
| Weight | Approx. 18 g |
As of April 14, 2021
- Outline drawing
As of April 14, 2021
As of April 14, 2021
- Connection diagra
As of April 14, 2021

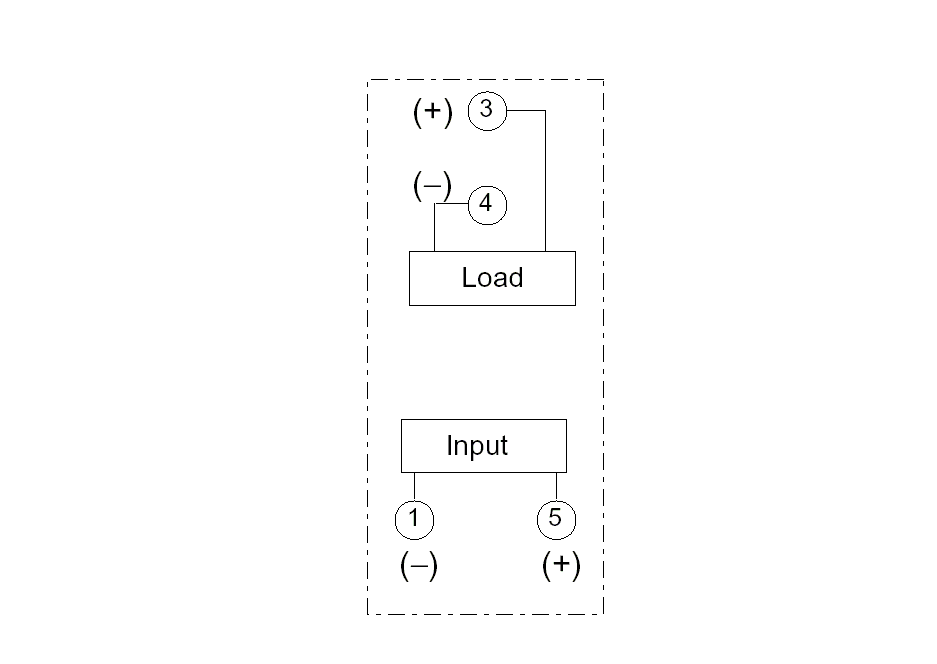

Terminal arrangement and internal connection
As of April 14, 2021
