G3RZ-201SLN DC24

I/O Terminal Socket


MOS-FET output, Input: 24 VDC, Output: 1A 5 to 240 VAC/Output: 1A 5 to 100 VDC, SPST-NO, with Indicator, Plug-in terminal

Product classification Relay compatible Solid State Relay
Operating rated voltage 24 VDC
Load voltage range 3 to 125 VDC
3 to 264 VAC
Load current 100 µA to 1 A at 40 ℃
Zero cross function Not equipped
Indicator Equipped
Terminal structure Plug-in terminal

Item list of G70A

  • Ratings / Performance
Product classificationRelay compatible Solid State Relay
Operating rated voltage24 VDC
Operating voltage range19.2 to 28.8 VDC
Input impedance2.2 kΩ±20%
Must operate voltage19.2 VDC max.
Must release voltage1 VDC min.
Isolation methodPhoto volt coupler
Rated load voltage5 to 240 VAC
5 to 100 VDC
Load voltage range3 to 125 VDC
3 to 264 VAC
Load current100 µA to 1 A at 40 ℃
Inrush current resistivity10 A (10 ms)
10 A (10 ms)
Leakage current10 µA (at 125 VDC)
100 µA (at 200 VAC)
Ambient temperatureOperating: -30 to 85 ℃
Storage: -30 to 100 ℃
(with no icing or condensation)
Ambient humidityOperating: 45 to 85%RH
(with no icing or condensation)
Operate time6 ms max.
Release time10 ms max.
Zero cross functionNot equipped
IndicatorEquipped
Insulation resistance100 MΩ (at 500 VDC)
Dielectric strengthBetween input and output: 2500 V 50/60 Hz 1 min
Vibration resistance10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance1,000 m/s**2
Terminal structurePlug-in terminal
MountingSocket
WeightApprox. 20 g

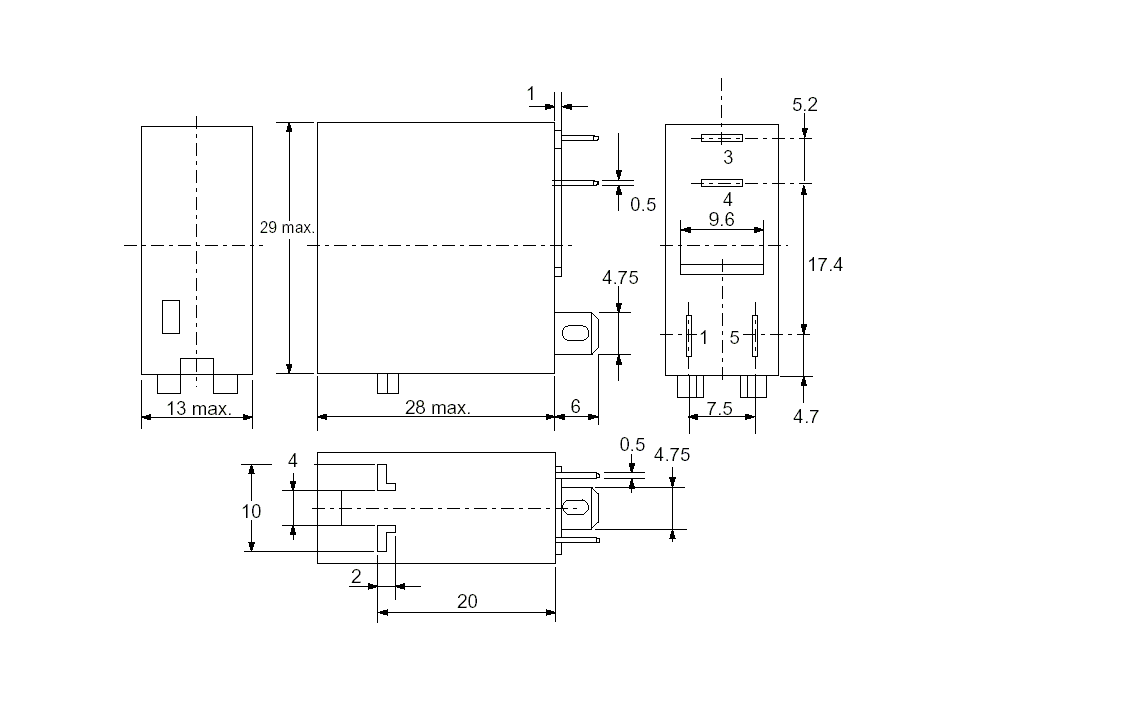

  • Dimensions

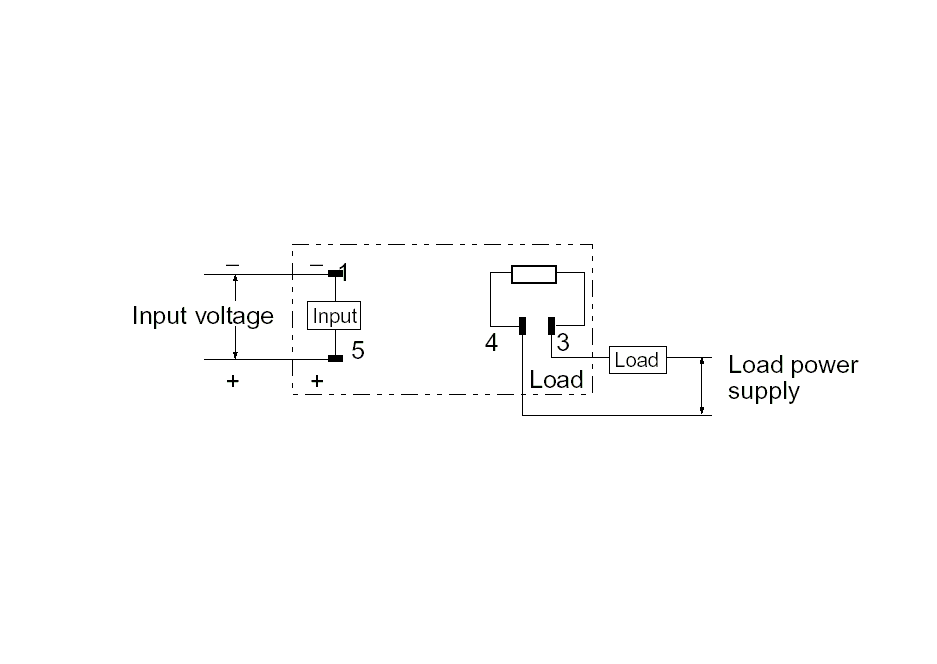

  • Connection diagram

Terminal arrangement and internal connection

  • Characteristic figure

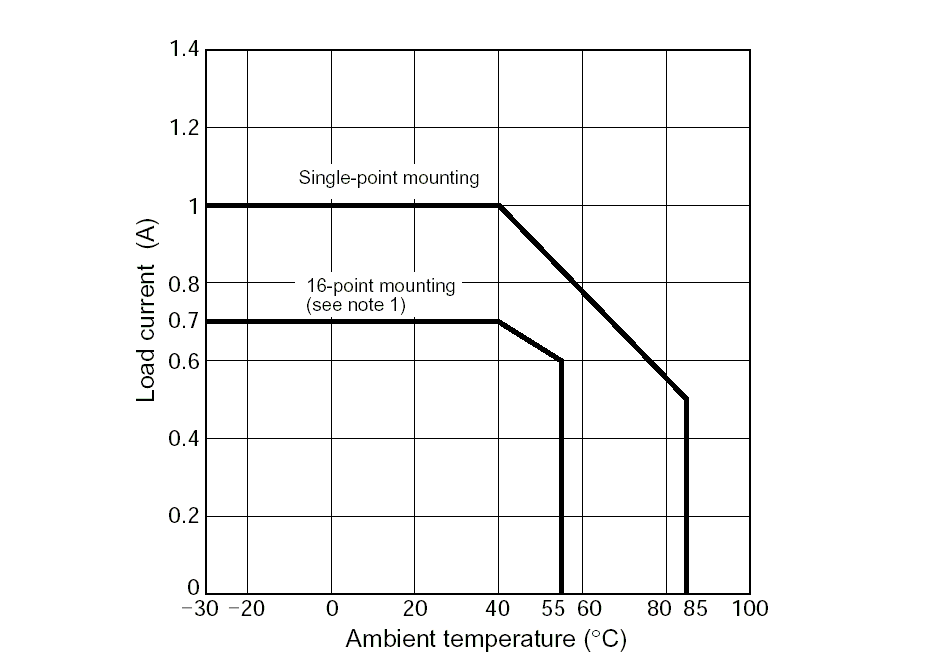

Load current-ambient temperature

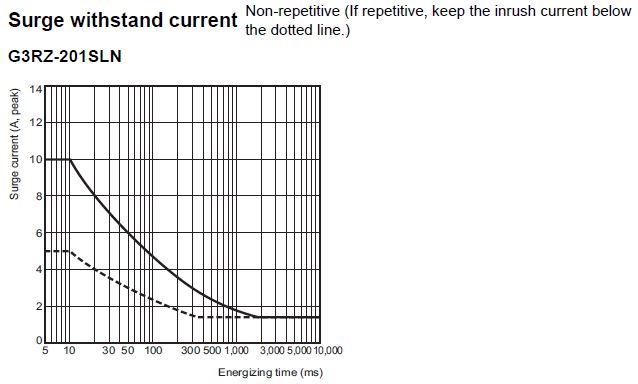

Inrush current resistivity (Non-repetitive) (The dotted line is a repetition. Keep the inrush current below the values shown by the dotted line if it occurs repetitively.)
