XS3F-S421-405-R

Round Water-resistant Connectors (M8/S8)


Snap-in Water-resistant Connectors, Robot Cable (5 m), Straight, 4 pole

Type Water-resistant Connectors
Number of poles 4 pole
Location of lead output Straight
Fastening method Snap-in
Cable length 5 m

Item list of XS3

  • Ratings/Performance
TypeWater-resistant Connectors
Number of poles4 pole
Plug/socketSocket
Location of lead outputStraight
Fastening methodSnap-in
Rated voltage125 VDC
Rated current1 ADC
Contact resistance40 mΩ max. (20 mV max, 100 mA max.)
Cable specificationsTypeRobot Cable
Outer diameter4 mm dia.
Number of wires4 cores
Cable length5 m
Ambient temperature range (Operating)0 to 70 ℃
Ambient humidity range (Operating)20 to 85% RH
Insulation resistance1000 MΩ min. (at 500 VDC)
Dielectric strength1,000 VAC 1 min (Leakage current 1mA max.)
Degree of protectionIP67
Applicable connectorXS3M (M8/S8)
XS3H (S8)
XS3W (S8)
MaterialPin block: PBT resin
Contact: Phosphor bronze/nickel base (gold plating)
O-ring: Rubber parts
Cover: TPEE
Insertion durability200 time

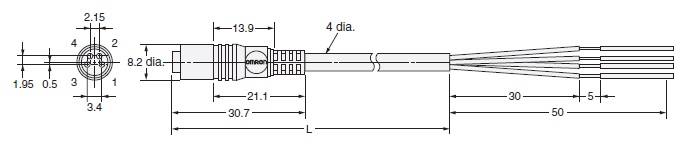

  • Dimensions
