GlobalXS3F-S422-402-R
Round Water-resistant Connectors (M8/S8)
Round Water-resistant Connector, Socket on One Cable End, Snap-in Connector, Right-angle, 4 poles, Robot cable, 2 m
| Type |
Water-resistant Connectors |
|---|---|
| Number of poles |
4 pole |
| Location of lead output |
Right-angle |
| Fastening method |
Snap-in |
| Cable length |
2 m |
- Ratings/Performance
As of July 25, 2024
| Type | Water-resistant Connectors | |
|---|---|---|
| Number of poles | 4 pole | |
| Plug/socket | Socket | |
| Location of lead output | Right-angle | |
| Fastening method | Snap-in | |
| Rated voltage | 125 VDC | |
| Rated current | 1 ADC | |
| Contact resistance | 40 mΩ max. (20 mV max, 100 mA max.) | |
| Cable specifications | Type | Robot Cable | Outer diameter | 4 mm dia. | Number of wires | 4 cores | Cable length | 2 m |
| Ambient temperature range (Operating) | 0 to 70 ℃ | |
| Ambient humidity range (Operating) | 20 to 85 % | |
| Insulation resistance | 1000 MΩ min. (at 500 VDC) | |
| Dielectric strength | 1,000 VAC 1 min (Leakage current 1mA max.) | |
| Degree of protection | IP67 | |
| Applicable connector | XS3M (M8/S8) XS3H (S8) XS3W (S8) | |
| Material | Pin block: PBT resin Contact: Phosphor bronze/nickel base (gold plating) O-ring: Rubber parts Cover: TPEE | |
| Insertion durability | 200 time | |
As of July 25, 2024

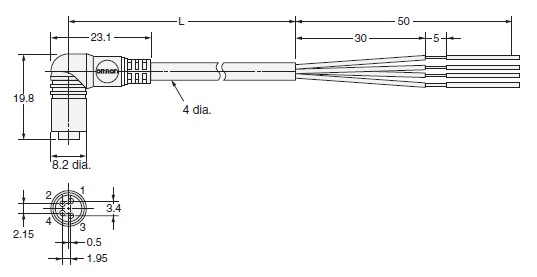

- Dimensions
As of July 25, 2024
As of July 25, 2024
