XS3M-K421-2

Round Water-resistant Connectors (M8/S8)


Sensor-embedded Plugs, Solder-cup terminal

Type Water-resistant Connectors
Number of poles 4 pole

Item list of XS3

  • Ratings/Performance
TypeWater-resistant Connectors
Number of poles4 pole
Plug/socketPlug
Rated voltage125 VDC
Rated current1 ADC
Contact resistance40 mΩ max. (20 mV max, 100 mA max.)
Ambient temperature range (Operating)-25 to 70 ℃
Ambient humidity range (Operating)20 to 85 %
Insulation resistance1000 MΩ min. (at 500 VDC)
Dielectric strength1,000 VAC 1 min (Leakage current 1mA max.)
Degree of protectionIP67
Applicable connectorXS3F (M8/S8)
XS3W (M8/S8)
Mounting methodEmbedded with screw threads
MaterialPin block: PBT resin
Contact: Brass/nickel base (gold plating)
Fixture: Brass/nickel plating or SUS316L
O-ring: Rubber parts
Insertion durability200 time

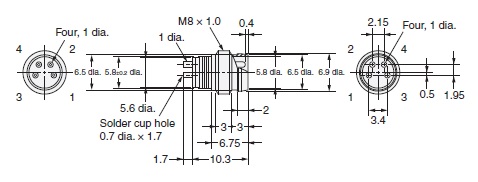

  • Dimensions

Series

Round Water-resistant Connectors (M8/S8)

XS3
