XS3W-M421-402-R

Round Water-resistant Connectors (M8/S8)


M8 Screw-on Water-resistant Connectors, Robot Cable (2 m), Straight (Socket)/Straight (Plug), 4 pole

Type Water-resistant Connectors
Number of poles 4 pole
Location of lead output Straight (Socket)/Straight (Plug)
Fastening method M8 Screw-on
Cable length 2 m

Item list of XS3

  • Ratings/Performance
TypeWater-resistant Connectors
Number of poles4 pole
Plug/socketPlug/socket
Location of lead outputStraight (Socket)/Straight (Plug)
Fastening methodM8 Screw-on
Rated voltage125 VDC
Rated current1 ADC
Contact resistance40 mΩ max. (20 mV max, 100 mA max.)
Cable specificationsTypeRobot Cable
Outer diameter4 mm dia.
Number of wires4 cores
Cable length2 m
Ambient temperature range (Operating)0 to 70 ℃
Ambient humidity range (Operating)20 to 85% RH
Insulation resistance1000 MΩ min. (at 500 VDC)
Dielectric strength1,000 VAC 1 min (Leakage current 1mA max.)
Degree of protectionIP67
Applicable connectorSocket: XS3M (M8/S8)
XS3H (M8)
Plug: XS3F (M8)
XS3W (M8)
XS3P (M8)
MaterialPin block: PBT resin
Contact: Phosphor bronze/nickel base (gold plating)
Fixture: Brass/nickel plating or SUS316L
O-ring: Rubber parts
Cover: Soft PBT resin
Insertion durability200 time

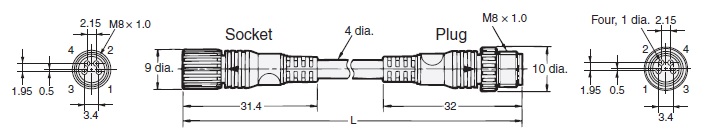

  • Dimensions
