Solid-state timer
Rated power supply voltage |
12 VDC |
---|---|
Control output (Type) |
Time-limit: DPST-NO |
Connecting method |
8-pin round socket (Push-In Plus Terminal Block) |
As of February 28, 2024
Rated power supply voltage | 12 VDC |
---|---|
Allowable voltage variable range | 90 to 110% of the power supply voltage |
Power consumption | Relay ON: Approx. 0.4 W |
Reset voltage | 10% max. of rated supply voltage |
Number of time ranges | 4 |

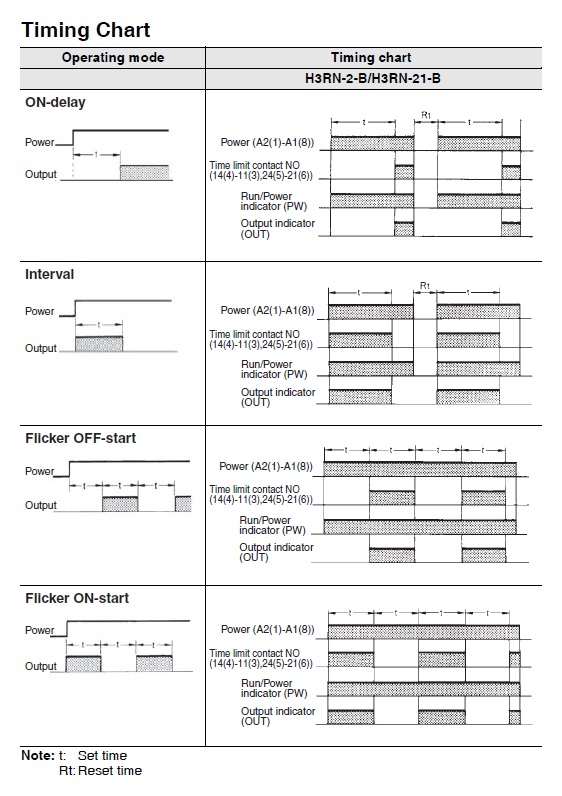

Operation mode | ON delay, Interval, Flicker ON start, Flicker OFF start |
Control output (Type) | Time-limit: DPST-NO |
Control output (Contact output) | Resistive load: 3 A at 250 VAC (cosφ=1) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
Ambient temperature range | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
Ambient humidity range | Operating: 35 to 85 % |
Accuracy of operating time | ±1% FS max. |
Setting error | ±15% FS ±50 ms max. |
Reset time | 0.1 s max. (including halfway reset) |
Influence of voltage | ±2% FS max. |
Influence of temperature | ±2% FS max. |
Insulation resistance | 100 MΩ min. (at 500 VDC) |
Dielectric strength | Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
Impulse withstand voltage | Between power terminals: 1 kV |
Noise immunity | ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
Shock resistance | Destruction: 980 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
Life expectancy (relay output) | Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
Degree of protection | IP40 (excluding terminal section) |
Connecting method | 8-pin round socket (Push-In Plus Terminal Block) |
Case color | Black |
Weight | Approx. 18 g |
Applicable socket | P2RF-08-PU |
As of February 28, 2024
As of February 28, 2024

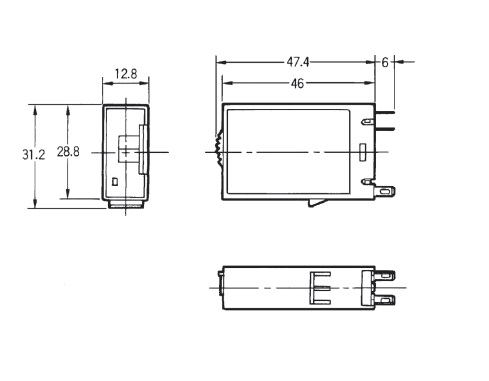

Outline drawing
As of February 28, 2024
As of February 28, 2024

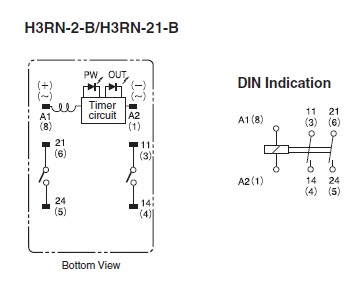

Internal connection
