GlobalH3CR-A8S AC24-48/DC12-48
Solid-state Multi-functional Timers
24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output One transistor output (Time-limit), ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin
| Rated power supply voltage |
24 to 48 VAC 50/60 Hz 12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier) |
|---|---|
| Control output (Type) |
One transistor output (Time-limit) |
| Operating resetting |
Time-limit operation/Self-reset |
| Connecting method |
8-pin round socket |
- Ratings/Specifications
As of July 16, 2020
| Rated power supply voltage | 24 to 48 VAC 50/60 Hz 12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier) |
|---|---|
| Allowable voltage variable range | 85% to 110% of rated voltage (90 to 110% at 12 to 48 VDC) |
| Power consumption | at output ON: Approx. 0.3 W (at 24 VDC)/at output OFF: Approx. 0.2 W (at 24 VDC) |
| Reset voltage | 10% max. of rated supply voltage |
| Number of time ranges | 18 |
| Operation mode | ON delay, Flicker OFF start, Flicker ON start, Interval, One shot output |
| Control output (Type) | One transistor output (Time-limit) |
| Control output (No-contact output) | NPN open collector 30 VDC 100 mA max., Residual voltage: 2 V max. |
| Operating resetting | Time-limit operation/Self-reset |
| Ambient temperature range | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | ±0.2% FS max. ±0.2% ±10 ms in a range of 1.2 s and 3 s |
| Setting error | ±5% FS ±50 ms max. |
| Reset time | 0.1 s max. |
| Influence of voltage | ±0.2% FS max. ±0.2% ±10 ms in a range of 1.2 s and 3 s |
| Influence of temperature | ±1% FS max. (±1% ±10 ms in a range of 1.2 s and 3 s) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 1,000 VAC 50/60 Hz 1 min Between control output terminals and operating circuit: 1,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 1 kV Between current carrying terminals and exposed non-current carrying metal parts: 1.5 kV |
| Noise immunity | ±1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Degree of protection | Panel surface: IP40 Terminals: IP00 |
| Connecting method | 8-pin round socket |
| Case color | Munsell 5Y7/1 |
| Accessories | Instruction manual, Compliance information sheet |
| Weight | Approx. 90 g |
As of July 16, 2020
- Dimensions
As of July 16, 2020
Outline drawing
As of July 16, 2020

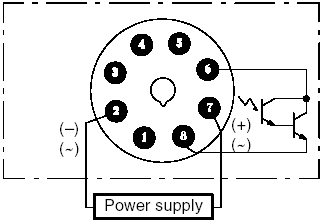

- Internal connection
As of July 16, 2020
Internal connection
As of July 16, 2020
- Terminal arrangement
As of July 16, 2020
Terminal arrangement
As of July 16, 2020
- Time ranges
As of July 16, 2020
Time ranges
As of July 16, 2020
- Operating chart
As of July 16, 2020
Operating chart
ON delay
Flicker OFF start
Flicker ON start
Interval
One shot output
As of July 16, 2020
