R87F-A3A83H

AC Axial Fans


AC Axial Fans, Plastic blades type, 80 x 80 mm, Frame thickness 25, High speed, Lead-wire type, 115 VAC

Motor type Single-phase shading coil induction motor (2-pole, open type)
Rotation speed High speed
Size 80 x 80 x t25 mm
Rated voltage 115 VAC
Max. flow rate (Nominal value) 50 Hz: 0.6 m3/min
60 Hz: 0.7 m3/min
Bearings Ball bearing

Item list of R87F / R87T

  • Ratings/Performance
Motor typeSingle-phase shading coil induction motor (2-pole, open type)
Rotation speedHigh speed
Size80 x 80 x t25 mm
Rated voltage115 VAC
Permitted voltage fluctuation range85% to 110% of rated voltage
Rated current (Nominal value)50 Hz: 0.085 A
60 Hz: 0.070 A
Rated input (Nominal value)50 Hz: 7 W
60 Hz: 6 W
Rated rotational speed (Nominal value)50 Hz: 2600 r/min
60 Hz: 3000 r/min
Max. flow rate (Nominal value)50 Hz: 0.6 m3/min
60 Hz: 0.7 m3/min
Max. static pressure (Nominal value)50 Hz: 39.2 Pa
60 Hz: 53.9 Pa
Noise (Nominal value)50 Hz: 32 dB
60 Hz: 36 dB
ProtectionImpedance protection
Ambient temperatureOperating: -30 to 70 ℃ (with no icing)
Storage: -40 to 85 ℃ (with no icing)
Ambient humidityOperating: 25 to 85 %
Insulation classIEC class B (130 ℃)
UL class A (105 ℃)
CSA class A (105 ℃)
Insulation registanceBetween all power supply connections and uncharged metal parts: 100 MΩ min. (at 500 VDC)
MaterialFrame: Aluminum diecast
Blades: Glass polycarbonate
BearingsBall bearing
WeightApprox. 230 g
  • Dimensions

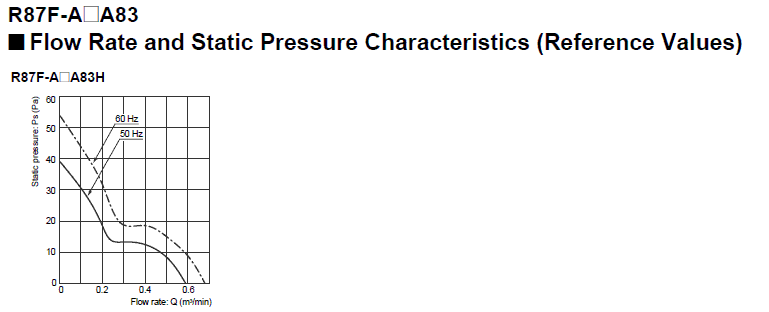

  • Characteristics
