GlobalS8AS-24006R
Smart Power Supply
Smart Power Supply, Capacity 240 W
| Power rating |
240 W |
|---|---|
| Output voltage |
24 VDC |
| Rated input voltage |
100 to 240 VAC |
| Construction |
Covered type |
| Connection |
Terminal blocks |
| Terminal type |
Screw terminal, Screwless terminal |
- Specifications
As of March 14, 2024
| Power rating | 240 W | |
|---|---|---|
| Output voltage | 24 VDC | |
| Efficiency | 80 % typ. | |
| Input | Rated input voltage | 100 to 240 VAC | Allowable input voltage variable range | 85 to 264 VAC | Frequency | 50/60Hz (47 to 63 Hz) | Rated input current | 3.8 A max. (at 100 VAC input) 2.0 A max. (at 200 VAC input) | Power factor | 0.95 min. | Leakage current | 0.5 mA max. (at 100 VAC input) 1 mA max. (at 200 VAC input) | Inrush current (cold start at 25 ℃) | 25 A max. (at 100 VAC input) 50 A max. (at 200 VAC input) |
| Output | Rated output current | 10 A | Output voltage variable range | ±10 % (With V.ADJ) | Ripple | 2 %(p-p) max. | Static input variation influence | 0.5 % max. (at 100% load) | Static load variation influence | 4.0 % max. (at rated input, 0 to 100% load) | Ambient temperature variation influence | 0.05 %/℃ max. | Start up time | 3000 ms max. | Hold time | 20 ms min. |
| Additional functions | Series operation | No | Parallel operation | No | Output indicator | Yes (color: green) | Output voltage indication | Yes | Output current indication | Yes | Maintenance forecast monitor | Output: Yes (photoswitch output, 30 VDC max., 50 mA max., Leakage current: 0.1 mA max., Residual voltage: 2 V max.) | Undervoltage alarm | Output: Yes (photoswitch output, 30 VDC max., 50 mA max., Leakage current: 0.1 mA max., Residual voltage: 2 V max.) Indication: Yes | Communications | Yes (RS-485) |
| Insulation | Dielectric strength | Between all input terminals and all branch outputs/all I/O signals/all communications terminals: 3 kVAC for 1 min, Detection current: 20 mA Between all input terminals and PE terminals: 2 kVAC for 1 min, Detection current: 20 mA Between all branch outputs/all I/O signals/all communications and PE terminals: 1 kVAC for 1 min, Detection current: 20 mA Between all branch outputs/all I/O signals and all communications terminals: 500 VAC for 1 min, Detection current: 20 mA Between all I/O signals and all communications: 500 VAC for 1 min, Detection current: 20 mA Between all input signals and all output signals: 500 VAC for 1 min, Detection current: 20 mA | Insulation resistance | Between all branch outputs/all I/O signals/all communications terminals and all input terminals/PE terminals: 100 MΩ min., at 500 VDC |
| Environment | Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours | Shock resistance | 150 m/s2, in each 6 directions 3 times | Ambient temperature (Operating) | -10 to 60 ℃ (with no freezing or condensation) | Ambient temperature (Storage) | -25 to 65 ℃ | Ambient humidity (Operating) | 25 to 85 % | Ambient humidity (Storage) | 25 to 90 % |
| Reliability | Life expectancy | 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting) |
| Construction | Construction | Covered type | Connection | Terminal blocks | Terminal type | Screw terminal, Screwless terminal | Mounting | DIN track mounting | Weight (Main) | 1600 g max. |
Note
Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
As of March 14, 2024

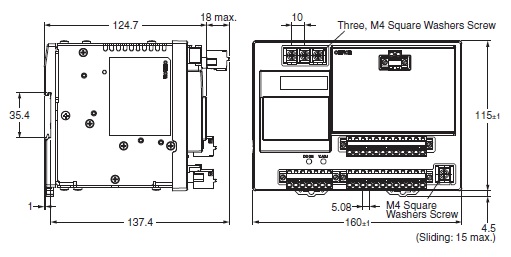

- Dimension
As of March 14, 2024
As of March 14, 2024
- Connection diagram
As of March 14, 2024
Block diagram
As of March 14, 2024
- Derating curve
As of March 14, 2024
As of March 14, 2024
