GlobalE2Q6-N30ME3-H
Rectangular Proximity Sensor
Unshielded, Square type, DC Three-wires models, Sensing distance 30 mm ±10%, NO+NC, NPN, Terminal block models
| Sensing head size |
40 mm x 40 mm x 118 mm |
|---|---|
| Type |
Square type, Unshielded |
| Power source |
DC Three-wires models |
| Sensing distance |
30 mm ±10% |
| Setting distance |
0 to 24 mm |
| Operation mode |
NO+NC |
- Ratings/Performance
As of October 11, 2021
| Sensing head size | 40 mm x 40 mm x 118 mm |
|---|---|
| Type | Square type, Unshielded |
| Power source | DC Three-wires models |
| Sensing distance | 30 mm ±10% |
| Setting distance | 0 to 24 mm |
| Differential distance | 15% max. of sensing distance |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object | Iron 90 x 90 x 1 mm |
| Response frequency | 100 Hz (Average value) |
| Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
| Current consumption | 20 mA max. |
| Control output (Output type) | NPN |
| Control output (Switching capacity) | 200 mA max. |
| Control output (Residual voltage) | 2 V max. (at 200 mA load current) |
| Indicator | Power indicator (green), Detection indicator (yellow) |
| Operation mode | NO+NC |
| Protective circuit | Output short-cut protection Output reverse polarity protection Power supply reverse polarity protection |
| Ambient temperature (Operating) | -25 to 70 ℃ |
| Ambient temperature (Storage) | -25 to 70 ℃ |
| Ambient humidity (Operating) | 35 to 95% |
| Ambient humidity (Storage) | 35 to 95% |
| Temperature influence | ±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ |
| Voltage influence | ±2% max. of sensing distance at 24 VDC in the range of 24 VDC ±15% ±2% max. of sensing distance at 12 VDC in the range of 12 VDC ±15% |
| Insulation resistance | Between charged parts and the case: 50 MΩ min. at 500 VDC |
| Dielectric strength | Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude for each in X, Y, and Z directions |
| Shock resistance | Destruction: 300 m/s2 3 times each in X, Y and Z directions |
| Degree of protection | IEC: IP67 |
| Connection method | Terminal block models |
| Weight | Package: Approx. 250 g Main: Approx. 230 g |
| Material | Case: Polyamide Sensing surface: Polyamide Terminal blocks: Polyamide |
| Accessories | Instruction manual |
As of October 11, 2021
- Dimensions
As of October 11, 2021

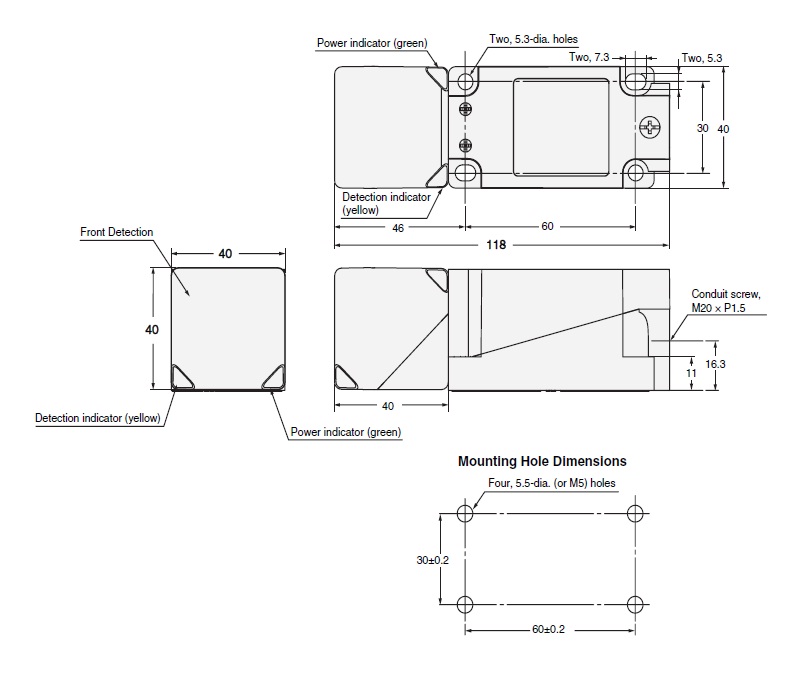

Dimensions
As of October 11, 2021
- Output circuit
As of October 11, 2021

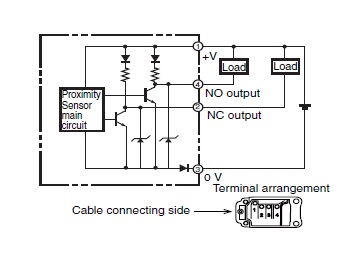

Output circuit

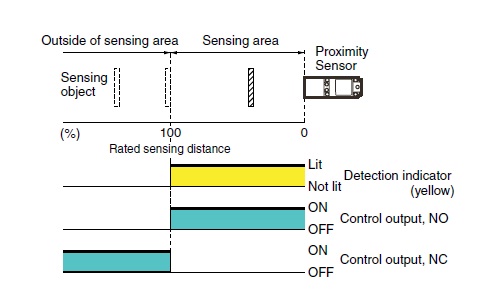

Timing chart
As of October 11, 2021
- Mutual interference
As of October 11, 2021
Mutual interference

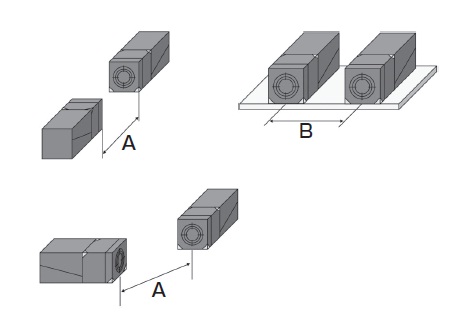

A: 280 mm min., B: 200 mm min.
As of October 11, 2021
- Effects of surrounding metals
As of October 11, 2021
Effects of surrounding metals

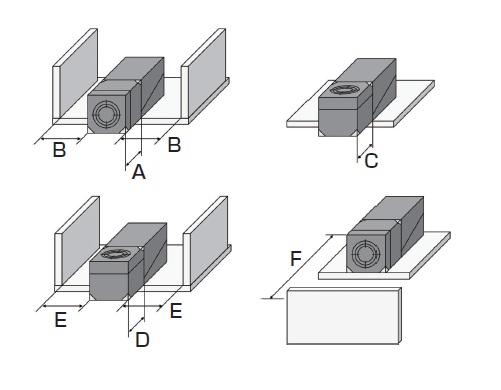

A: 40 mm min., B: 0 mm min., C: 25 mm min., D: 40 mm min., E: 20 mm min., F: 90 mm min.
As of October 11, 2021
- Characteristic chart
As of October 11, 2021

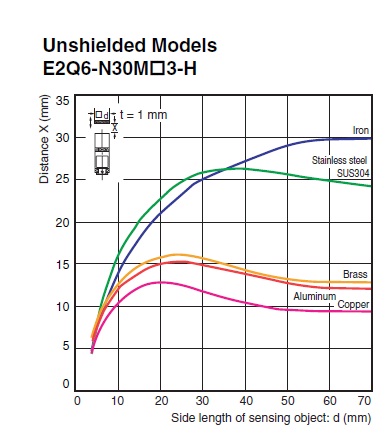

Sensing distance vs. size and material of sensing object

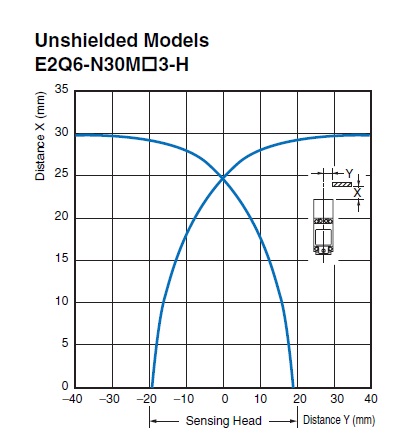

Sensing range
As of October 11, 2021
