E2NC-EA0

Smart Proximity Sensor


Smart Proximity Sensor, Amplifier Unit, Connector for sensor communications unit

Sensing head size 13.8 mm x 37 mm x 83.4 mm
Type Amplifier Unit

Item list of E2NC

  • Ratings/Performance
Sensing head size13.8 mm x 37 mm x 83.4 mm
Type Amplifier Unit
Response timeSuper-high-speed mode: 150 µs
High-speed mode: 300 µs
Standard mode: 1 ms
Giga-power mode: 4 ms
Power supply voltage10 to 30 VDC ripple (p-p) 10% included
Current consumptionat 24 VDC, Normal mode: 45 mA max.
at 24 VDC, Eco ON: 35 mA max.
at 24 VDC, Eco LO: 40 mA max.
Power consumptionat 24 VDC, Normal mode: 1080 mW
at 24 VDC, Eco ON: 840 mW
at 24 VDC, Eco LO: 960 mW
IndicatorOUT indicator (orange), NO/NC indicator (orange), ST indicator (Blue), OUT selection indicator (Orange)
Sensitivity settingSmart Tuning or manual adjustment
Protective circuitPower supply reverse polarity protection
Output short-circuit protection
Ambient temperature (Operating)Groups of 1 to 2 units: 0 to 55 ℃
Groups of 3 to 10 units: 0 to 50 ℃
Groups of 11 to 16 units: 0 to 45 ℃
Groups of 17 to 30 units: 0 to 40 ℃
Ambient temperature (Storage)-30 to 70 ℃
Ambient humidity (Operating)35 to 85 %
Ambient humidity (Storage)35 to 85 %
Insulation resistance20 MΩ or higher (500 VDC megger)
Dielectric strength1,000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 150 m/s2 3 times each in X, Y and Z directions
Connection methodConnector for sensor communications unit
WeightPackage: Approx. 65 g
Main: Approx. 25 g
MaterialCase: Polycarbonate (PC)
Cover: Polycarbonate (PC)
Cable: PVC
AccessoriesInstruction manual, End Plate

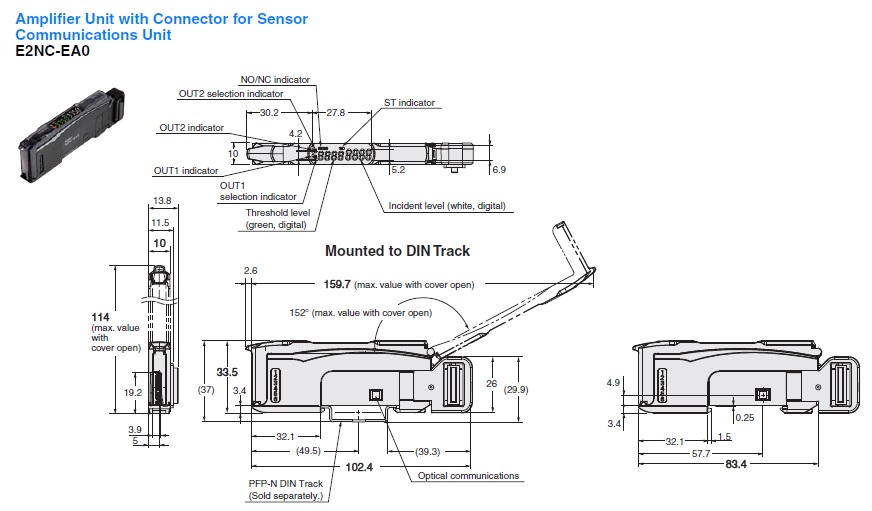

  • Dimensions
