E3ZM-V66

Color Mark Detection Compact Photoelectric Sensor


Diffuse-reflective (mark detection), Sensing distance 10 to 14 mm, Set in the order of the teaching operation, NPN, M8 connector models, White LED (450 to 700 nm), Remote control input

Sensing method Diffuse-reflective (mark detection)
Sensing distance 10 to 14 mm
Light source White LED (450 to 700 nm)
Connection method M8 connector models

Item list of E3ZM-V

  • Ratings/Performance
ShapeSquare type
Sensing methodDiffuse-reflective (mark detection)
Sensing distance10 to 14 mm
Spot size2 mm dia. max.
Light sourceWhite LED (450 to 700 nm)
Power supply voltage10 to 30 VDC ripple (p-p) 10% included
Current consumption25 mA max.
Power consumption750 mW max. (30 VDC)
Control outputNPN open collector
30 VDC max.
100 mA max.
Residual voltage: 2 V max.
Operation modeSet in the order of the teaching operation
Protective circuitOutput short-cut protection, Output reverse polarity protection, Power supply reverse polarity protection
Response timeOperate or reset: 50 µs max.
Sensitivity settingTeaching method
Ambient illuminanceIncandescent lamp: 3000 lux max., Sunlight: 10000 lux max.
Ambient temperature (Operating)-40 to 60℃ (with no freezing or condensation)
Ambient temperature (Storage)-40 to 70℃ (with no freezing or condensation)
Ambient humidityOperating: 35 to 85% (with no condensation)
Storage: 35 to 95% (with no condensation)
Insulation resistance20 MΩ min. (500 VDC megger)
Dielectric strength1000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP67
IP69K (DIN40050-9)
Connection methodM8 connector models
IndicatorOperation indicator (yellow), Stability indicator (green), Teaching indicator (red)
WeightPackage: Approx. 35 g
AccessoriesInstruction manual
MaterialCase: SUS316L
Lens: Methacrylate resin
Display: Polyether sulfone
Buttons: Fluorocarbon rubber
Cable: PVC

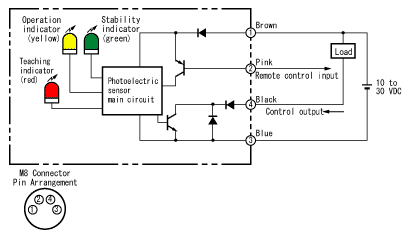

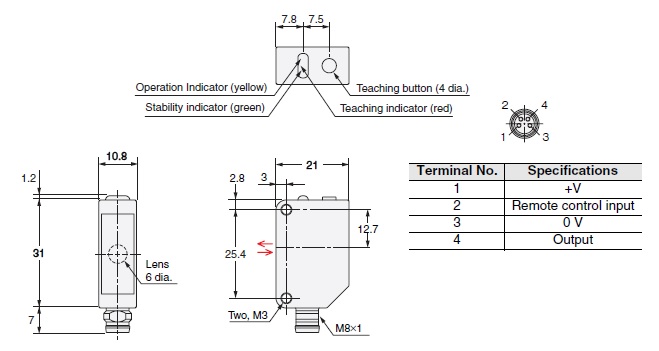

  • Output circuit diagram
