Color Mark Detection Compact Photoelectric Sensor
Sensing method |
Diffuse-reflective (mark detection) |
---|---|
Sensing distance |
10 to 14 mm |
Light source |
White LED (450 to 700 nm) |
Connection method |
Pre-wired models |
As of July 25, 2024

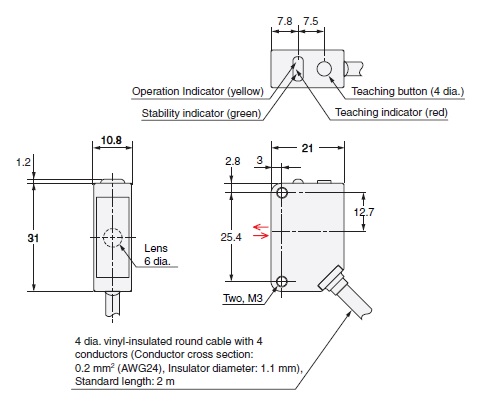

Shape | Square type |
---|---|
Sensing method | Diffuse-reflective (mark detection) |
Sensing distance | 10 to 14 mm |
Spot size | 2 mm dia. max. |
Light source | White LED (450 to 700 nm) |
Power supply voltage | 10 to 30 VDC ripple (p-p) 10% included |
Current consumption | 25 mA max. |
Power consumption | 750 mW max. (30 VDC) |

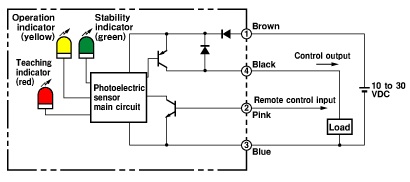

Control output | PNP open collector 30 VDC max. 100 mA max. Residual voltage: 2 V max. |

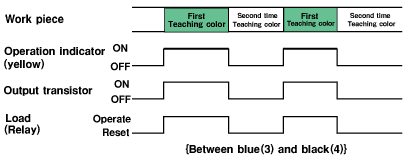

Operation mode | Set in the order of the teaching operation |
Protective circuit | Output short-cut protection, Output reverse polarity protection, Power supply reverse polarity protection |
Response time | Operate or reset: 50 µs max. |
Sensitivity setting | Teaching method |
Ambient illuminance | Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max. |
Ambient temperature range (Operating) | -40 to 60 ℃ (with no freezing or condensation) |
Ambient temperature range (Storage) | -40 to 70 ℃ (with no freezing or condensation) |
Ambient humidity range (Operating) | 35 to 85 % (with no condensation) |
Ambient humidity range (Strage) | 35 to 95 % (with no condensation) |
Insulation resistance | 20 MΩ min. (500 VDC megger) |
Dielectric strength | 1000 VAC 50/60 Hz 1 min |
Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions |
Degree of protection | IEC: IP67 IP69K (DIN40050-9) |
Connection method | Pre-wired models (Cable length 5 m) |
Indicator | Operation indicator (yellow), Stability indicator (green), Teaching indicator (red) |
Accessories | Instruction manual |
Material | Case: SUS316L Lens: Methacrylate resin Display: Polyether sulfone Buttons: Fluorocarbon rubber Cable: PVC |
