EE-SA801R 1M

Pushbutton-type Photomicrosensor


Photomicrosensor, Pushbutton type, Sensing distance: 0 to 3.5 mm, ON with no load, NPN output, Pre-wired robot cable, 1 m

Sensing method	Pushbutton
Sensing distance	pressed position: 0 to 3.5 mm (Output reverses between 3.5 and 4.5 mm.)
Control output (Output type)	PNP open collector output
Operation mode	ON with no load
Connection method	Pre-wired models

As of July 25, 2024


Sensing method		Pushbutton
Sensing distance		pressed position: 0 to 3.5 mm (Output reverses between 3.5 and 4.5 mm.)
Operation mode		ON with no load
Power supply voltage		12 to 24 VDC ±10% ripple (p-p) 10 % max.
Current consumption		35 mA
External diagnosis input		Emission OFF: Shorted to +DC or +DC-0.5 V max. (sink current: 30 mA max.) Emission ON: Open (leakage current: 0.4 mA max.)
Control output	Output type	PNP open collector output
	Load power supply voltage	5 to 24 VDC
	Load curren	50 mA max.
	Residual voltage	at 50 mA load current: 0.4 V max.
Protection circuits		Power supply reverse polarity protection
Response time		External diagnosis input: 1 ms max.
Ambient temperature		Operating: -25 to 55 ℃ (with no freezing or condensation) Storage: -30 to 60 ℃ (with no freezing or condensation)
Ambient humidity		Operating: 5 to 85 % (with no condensation) Storage: 5 to 95 % (with no condensation)
Vibration resistance		Destruction: 10 to 500 Hz, 1.0 mm single amplitude Acceleration: 150 m/s², 3 times each in X, Y, and Z directions (11 min/sweeps)
Shock resistance		Destruction: 500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection		IP40
Connection method		Pre-wired models
Cable length		1 m
Weight		Approx. 16.1 g
Material		Case: Polycarbonate (PC) Actuator: Polyacetal
Accessories		Instruction manual

As of July 25, 2024

As of July 25, 2024

As of July 25, 2024

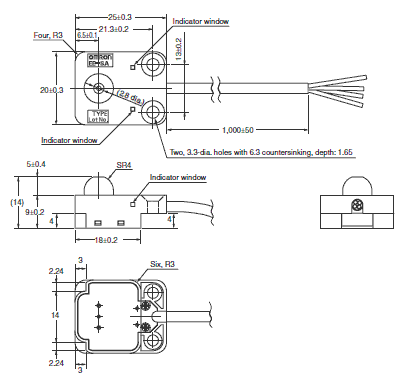

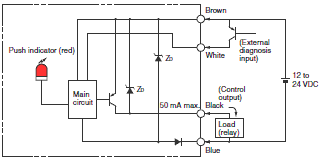

Output circuit

Timing chart

As of July 25, 2024

Series

Pushbutton-type Photomicrosensor
