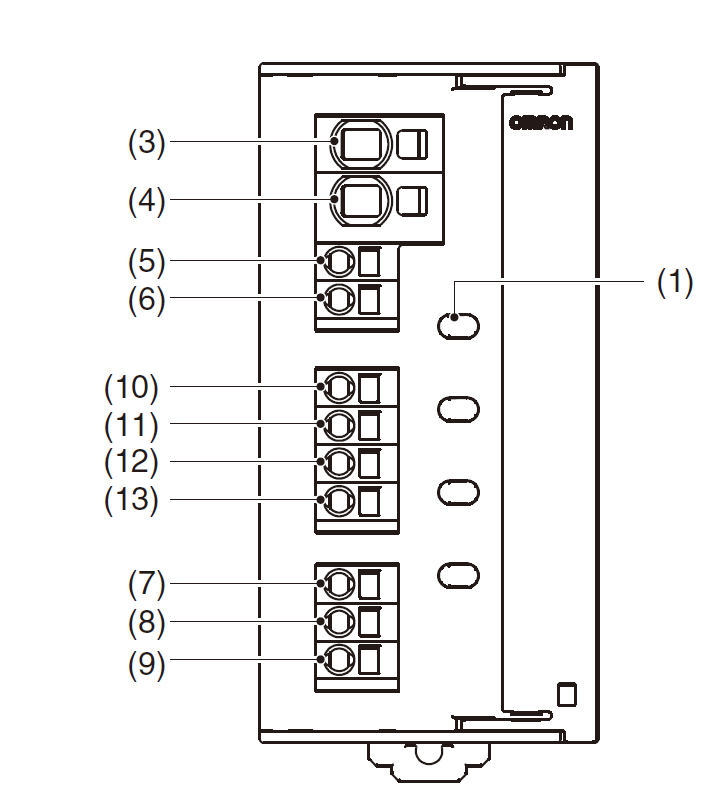

S8V-CP0424S

DC Electronic Circuit Protector (24 VDC 4 Outputs/8 Outputs Type)


DC Electronic Circuit Protector, Rated input voltage 24 VDC, Number of Outputs: 4 ch, UL Class2

Rated input voltage	24 VDC

Item list of S8V-CP

Specifications

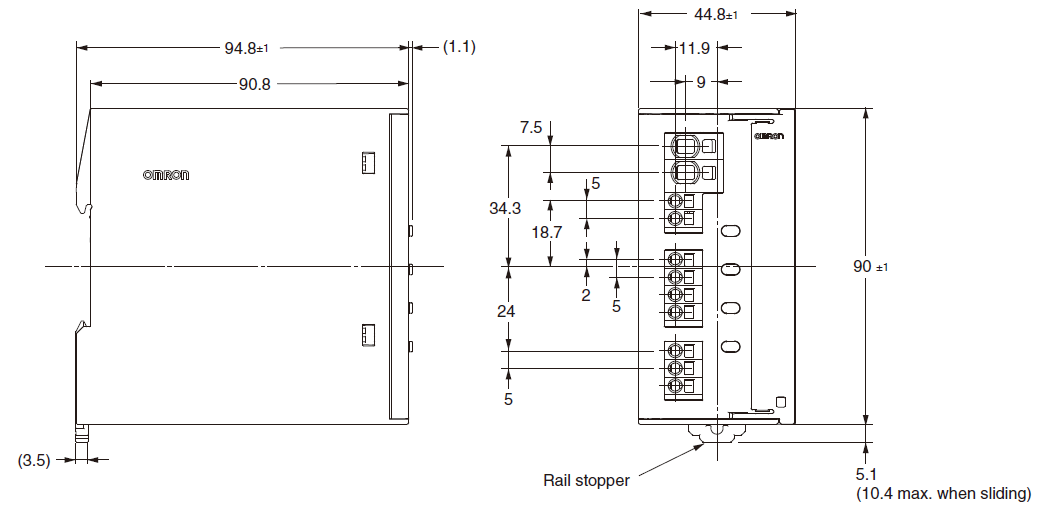

Dimension

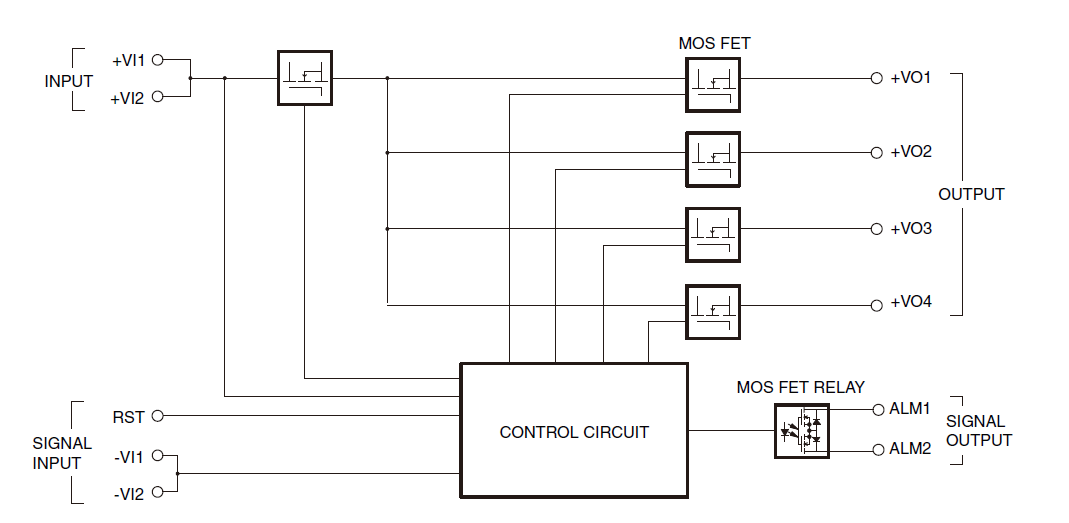

Connection diagram

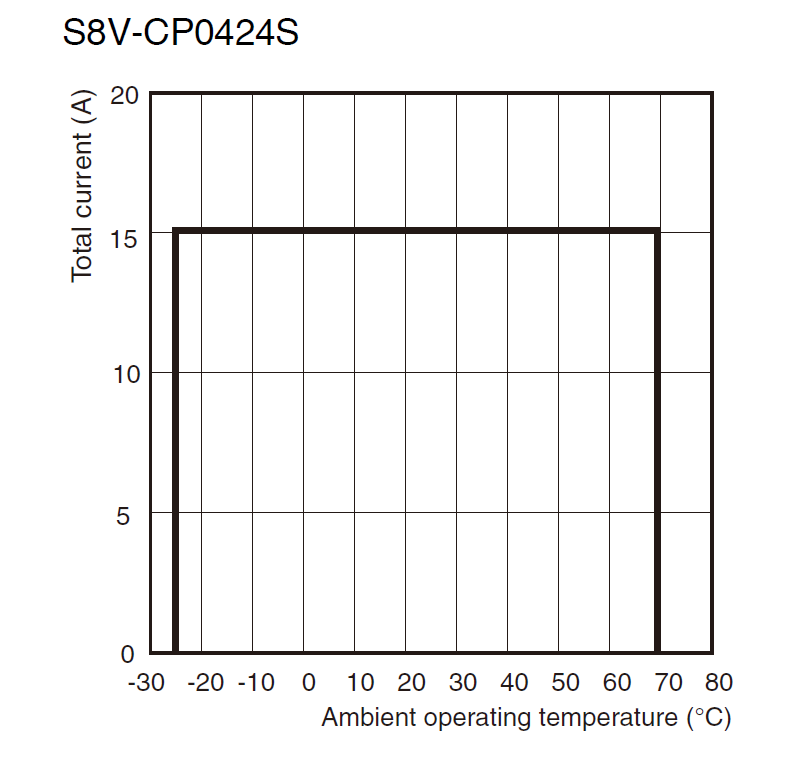

Derating curve

Specifications

As of November 4, 2025


Input	Rated input voltage	24 VDC
	Allowable input voltage variable range	20 to 28.8 VDC
	Rated input current	15.2 A
Output	Rated output current	3.8 A
Output	Start up time	250 ms typ. (Initialization time) 50 ms to 5 s (Start-up delay time)
Insulation	Dielectric strength	1 kVAC for 1 min, Cut-off current: 20 mA
Insulation	Insulation resistance	100 MΩ min., at 500 VDC
Environment	Vibration resistance	10 to 55 Hz, 5 G max., 0.42 mm single amplitude in each 3 directions for 2 hours
	Shock resistance	294 m/s², 3 times each in 6 directions
	Ambient temperature (Operating)	-25 to 70 ℃
	Ambient temperature (Storage)	-40 to 85 ℃ (with no freezing or condensation)
	Ambient humidity (Operating)	5 to 96 %
	Ambient humidity (Storage)	5 to 96 %
Reliability	MTBF	60,000 hours min.
Reliability	Life expectancy	10 years min.
Construction	Cooling fan	Cooling fan No
	Degree of protection	IP20 by IEC 60529
	Weight (Main)	170 g max.

Note

Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
