G3NA-420B-UTU AC100-240

Solid State Relays


Solid State Relay, Rated load voltage 200 to 480 VAC, 20 A, Zero cross function Equipped, Screw terminal, Certified by UL, CSA, and EN (TUV), Rated voltage 100 to 240 VAC

Product classification For single-phase heater
Zero cross function Equipped
Operating indicator Equipped
Rated voltage 100 to 240 VAC
Rated load voltage 200 to 480 VAC
Load current With heat sink (at 40 ℃): 0.2 to 20 A
Without heat sink (at 40 ℃): 0.2 to 4 A
Terminal structure Screw terminal

Item list of G3NA

  • Ratings / Performance
Ratings
Product classificationFor single-phase heater
Number of phasesSingle-phase
Isolation methodPhotocoupler
Zero cross functionEquipped
Operating indicatorEquipped
Terminal structureScrew terminal
MountingScrew mounting
InputRated voltage100 to 240 VAC
Operating voltage range75 to 264 VAC
Input impedance72 kΩ±20%
Operate voltage75 V max.AC
Release voltage20 V min.AC
OutputRated load voltage200 to 480 VAC
Load voltage range180 to 528 VAC
Load currentWith heat sink (at 40 ℃): 0.2 to 20 A
Without heat sink (at 40 ℃): 0.2 to 4 A
Inrush current resistivity220 A (60 Hz, 1 cycle)
Performance
Operate time3/2 cycle of load power source + 1 ms max.
Release time3/2 cycle of load power source + 1 ms max.
Output ON voltage drop1.8 V max. (RMS)
Leakage current10 mA max. (at 200 VAC)
20 mA max. (at 400 VAC)
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strength4,000 VAC, 50/60 Hz for 1 min
Vibration resistance10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock resistance1000 m/s2
Ambient temperature (Operating)-30 to 80 ℃ (with no freezing or condensation)
Ambient temperature (Storage)-30 to 100 ℃ (with no freezing or condensation)
Ambient humidity (Operating)45 to 85 %
WeightApprox. 80 g
Other featureCertified by UL, CSA, and EN (TUV)

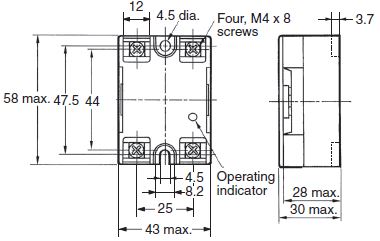

  • Outline drawing

Mounting holes

  • Connection diagra

Terminal arrangement and internal connection

  • Characteristic chart

Load current-ambient temperature

Inrush current resistivity (Non-repetitive)
