GlobalG3FM-2R5SLN DC12
Solid State Relays
Power MOS FET Relay, Photovoltaic coupler, Applied output load: 0.5 A at 24 to 240 VAC/0.5 A at 24 to 110 VDC, Rated input voltage: 12 VDC, Without Zero cross function, With Operating indicator, Plug-in terminal
| Product classification |
Relay compatible |
|---|---|
| Zero cross function |
None |
| Operating indicator |
Equipped |
| Rated voltage |
12 VDC |
| Rated load voltage |
24 to 110 VDC 24 to 240 VAC |
| Load current |
1 to 500 mA (at 40 ℃) |
| Terminal structure |
Plug-in terminal |
- Ratings / Performance
As of July 25, 2024
| Product classification | Relay compatible | |
|---|---|---|
| Isolation method | Photo volt coupler | |
| Zero cross function | None | |
| Operating indicator | Equipped | |
| Terminal structure | Plug-in terminal | |
| Mounting | Socket | |
| Input | Rated voltage | 12 VDC | Operating voltage range | 9.6 to 14.4 VDC | Input impedance | 600 Ω±20% | Operate voltage | 9.6 V max.DC | Release voltage | 1 V min.DC |
| Output | Rated load voltage | 24 to 110 VDC 24 to 240 VAC | Load voltage range | 19.2 to 125 VDC 19.2 to 264 VAC | Load current | 1 to 500 mA (at 40 ℃) | Inrush current resistivity | 6 A (10 ms) |
| Operate time | 5 ms max. |
|---|---|
| Release time | 10 ms max. |
| Output ON voltage drop | 3 V max. (RMS) |
| Leakage current | 0.1 mA max. (at 200 VAC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 1500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance | 1000 m/s2 |
| Ambient temperature (Operating) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85 % |
| Weight | Approx. 50 g |
| Connecting socket | PYF-08-PU/ PY08-02/ PYFZ-08/ PYFZ-08-E |
As of July 25, 2024

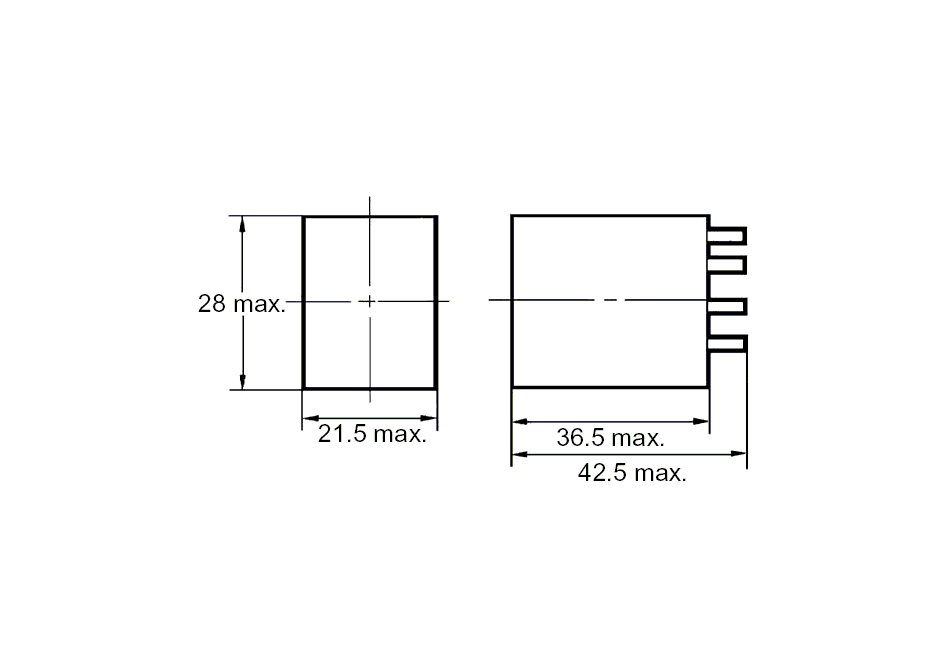

- Outline drawing
As of July 25, 2024
As of July 25, 2024
- Connection diagra
As of July 25, 2024

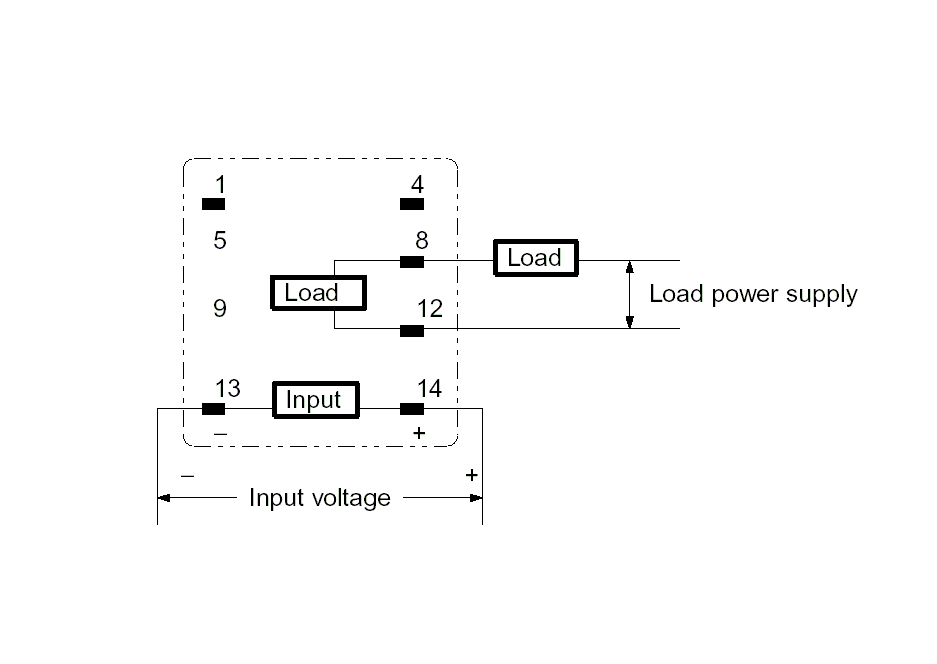

Terminal arrangement and internal connection
As of July 25, 2024
- Characteristic chart
As of July 25, 2024

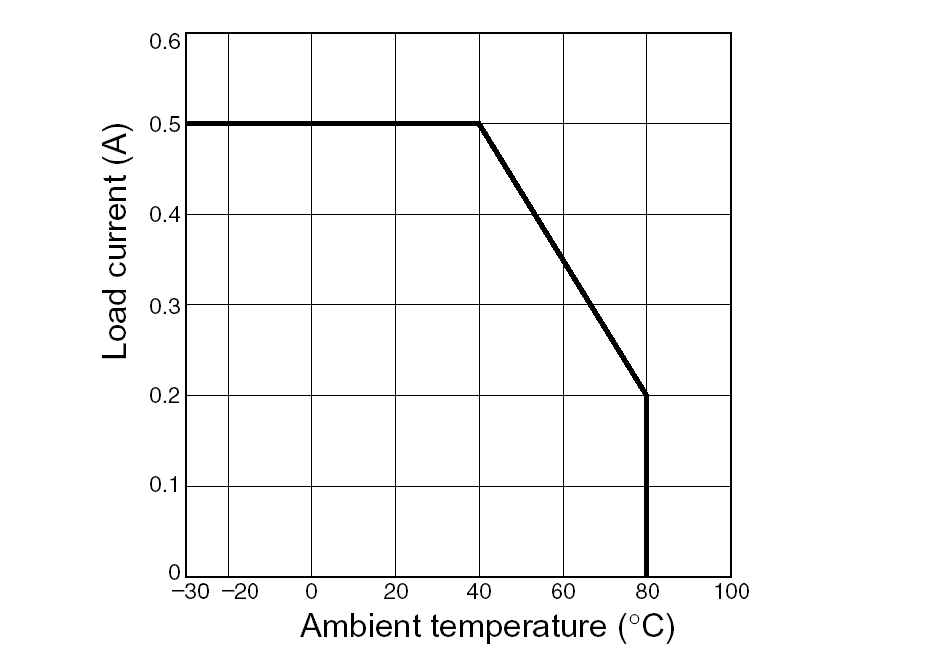

Load current-ambient temperature

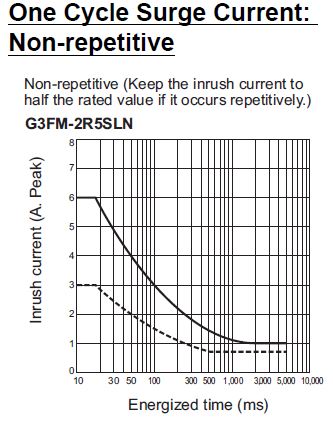

Inrush current resistivity (Non-repetitive)
As of July 25, 2024
