GlobalG3NA-D210B-UTU AC100-240
Solid State Relays
Solid State Relay, Rated load voltage 5 to 200 VDC, 0.416666666666667, Screw terminal, Certified by UL, CSA, and EN (TUV), Rated voltage 100 to 240 VAC
| Product classification |
For single-phase heater |
|---|---|
| Operating indicator |
Equipped |
| Rated voltage |
100 to 240 VAC |
| Rated load voltage |
5 to 200 VDC |
| Load current |
With heat sink (at 40 ℃): 0.1 to 10 A Without heat sink (at 40 ℃): 0.1 to 4 A |
| Terminal structure |
Screw terminal |
- Ratings / Performance
As of February 28, 2024
| Product classification | For single-phase heater | |
|---|---|---|
| Number of phases | Single-phase | |
| Isolation method | Photocoupler | |
| Operating indicator | Equipped | |
| Terminal structure | Screw terminal | |
| Mounting | Screw mounting | |
| Input | Rated voltage | 100 to 240 VAC | Operating voltage range | 75 to 264 VAC | Input impedance | 72 kΩ±20% | Operate voltage | 75 V max.AC | Release voltage | 20 V min.AC |
| Output | Rated load voltage | 5 to 200 VDC | Load voltage range | 4 to 220 VDC | Load current | With heat sink (at 40 ℃): 0.1 to 10 A Without heat sink (at 40 ℃): 0.1 to 4 A | Inrush current resistivity | 20 A (10 ms) |
| Operate time | 30 ms max. |
|---|---|
| Release time | 30 ms max. |
| Output ON voltage drop | 1.5 V max. |
| Leakage current | 5 mA max. (at 200 VDC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance | 1000 m/s2 |
| Ambient temperature (Operating) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85 % |
| Weight | Approx. 70 g |
| Other feature | Certified by UL, CSA, and EN (TUV) |
As of February 28, 2024
- Outline drawing
As of February 28, 2024
Mounting holes
As of February 28, 2024
- Connection diagra
As of February 28, 2024

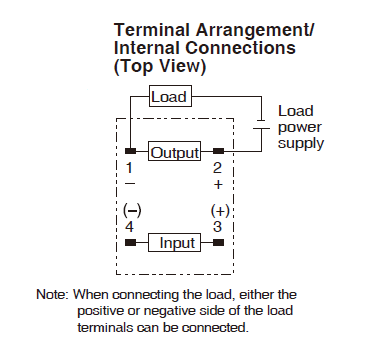

Terminal arrangement and internal connection
As of February 28, 2024
- Characteristic chart
As of February 28, 2024

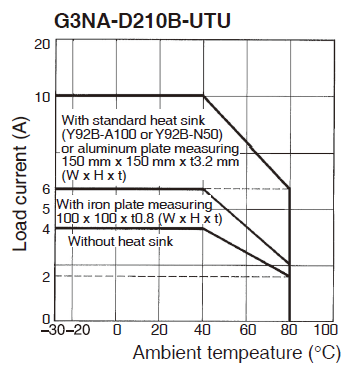

Load current-ambient temperature

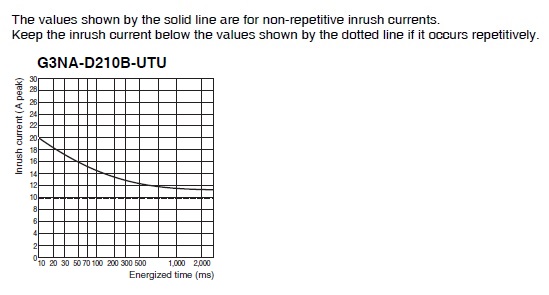

Inrush current resistivity (Non-repetitive)
As of February 28, 2024
