G3PE-235BL DC12-24

Solid State Relays for Heaters


Heater control, Input: 12 to 24 VDC, Output: 100 to 240 VAC, Load current: 0.5 to 35 A, Screw terminal, Screw mounting, DIN track mounting

Product classification For single-phase heater
Zero cross function Not equipped
Operating indicator Equipped (Yellow)
Rated voltage 12 to 24 VDC
Rated load voltage 100 to 240 VAC (50/60 Hz)
Load current 0.5 to 35 A (at 25 ℃)
Terminal structure Screw terminal

Item list of G3PE (Single-phase)

  • Ratings / Performance
Product classificationFor single-phase heater
Number of phasesSingle phase
Isolation methodPhototriac
Zero cross functionNot equipped
Operating indicatorEquipped (Yellow)
Terminal structureScrew terminal
MountingDIN track mounting, Screw mounting
InputRated voltage12 to 24 VDC
Operating voltage range9.6 to 30 VDC
Input current15 mA max.
Operate voltage9.6 VDC max.
Release voltage1 VDC min.
OutputRated load voltage100 to 240 VAC (50/60 Hz)
Load voltage range75 to 264 VAC 50/60 Hz
Load current0.5 to 35 A (at 25 ℃)
Inrush current resistivity440 A (60 Hz 1 cycle)
Permissible I2**t1260 A2s
Applicable loadLoad carrying capacityResistive load: 7 kW (at 200 VAC)
Operate time1 ms max.
Release time1/2 cycle of load power source + 1 ms max.
Output ON voltage drop1.6 V max. (RMS)
Leakage current10 mA max. (at 200 VAC)
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strength2500 VAC 50/60 Hz 1 min
Vibration resistance10 to 55 to 10 Hz, 0.375 mm single amplitude (0.75 mm double amplitude) (mounted on DIN track)
Shock resistance294 m/s2 (DIN Track mounting)
Ambient temperature (Operating)-30 to 80 ℃ (with no freezing or condensation)
Ambient temperature (Storage)-30 to 100 ℃ (with no freezing or condensation)
Ambient humidity (Operating)45 to 85% RH
WeightApprox. 400 g

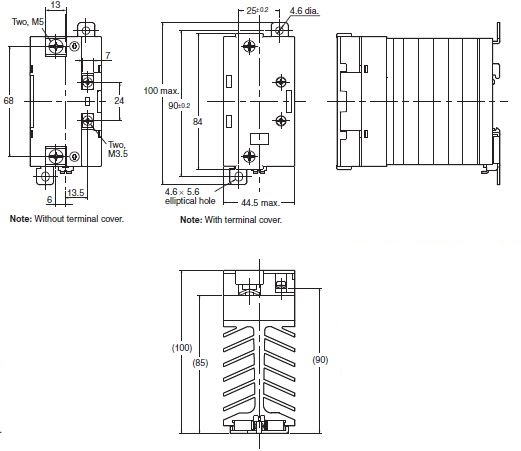

  • Outline drawing

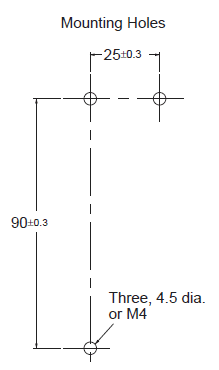

Mounting holes

  • Connection diagra

Terminal arrangement and internal connection

  • Characteristic chart

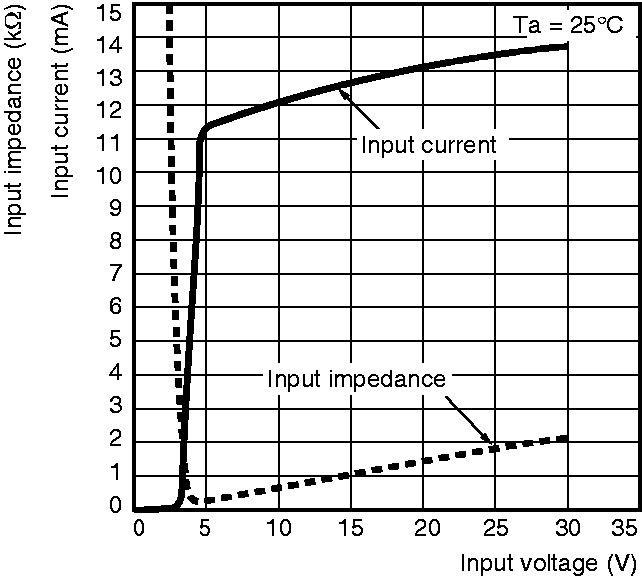

Input Voltage vs. Input Impedance and Input Voltage vs. Input Current

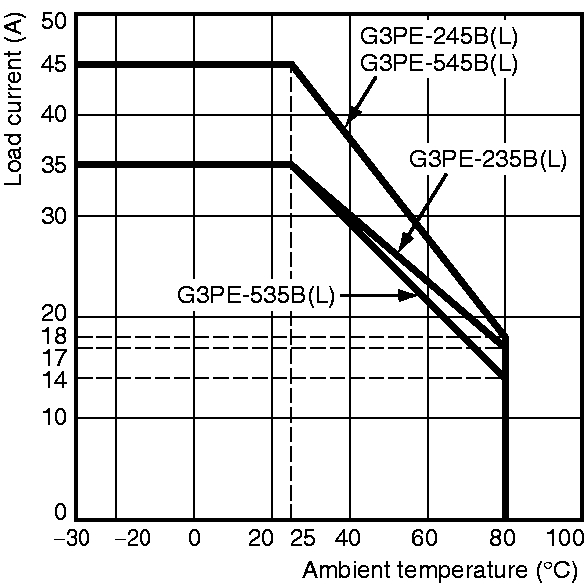

Load current-ambient temperature

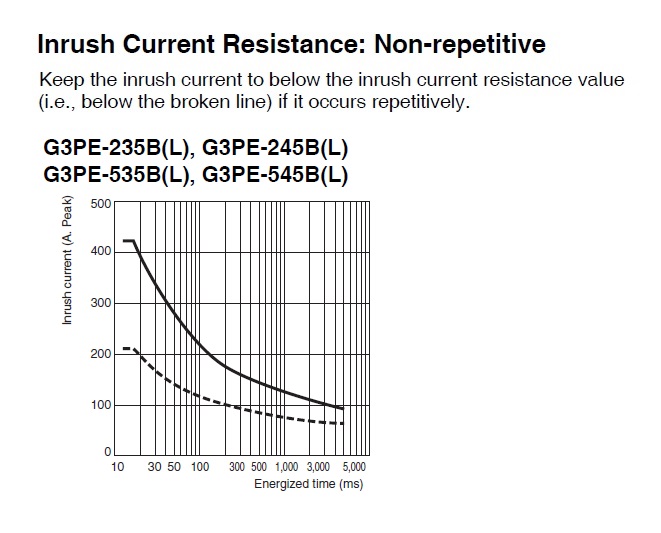

Inrush current resistivity (Non-repetitive)
