GlobalG3TA-OD201S-US DC24
Solid State Relays
I/O Solid State Relay, Output module, Photocoupler, Applied output load: 1 A at 48 to 200 VDC, Operating indicator Equipped, Rated voltage: 24 VDC
| Product classification |
Relay compatible |
|---|---|
| Operating indicator |
Equipped |
| Rated voltage |
24 VDC |
| Rated load voltage |
48 to 200 VDC |
| Load current |
0.01 to 1 A (at 40 ℃) |
| Terminal structure |
Plug-in terminal |
- Ratings / Performance
As of November 10, 2025
| Product classification | Relay compatible | |
|---|---|---|
| Isolation method | Photocoupler | |
| Operating indicator | Equipped | |
| Terminal structure | Plug-in terminal | |
| Mounting | Socket | |
| Case color | Black | |
| Input | Rated voltage | 24 VDC | Operating voltage range | 19.2 to 26.4 VDC | Input impedance | 6.4 kΩ±20% | Operate voltage | 19.2 V max.DC | Release voltage | 2 V min.DC |
| Output | Rated load voltage | 48 to 200 VDC | Load voltage range | 48 to 200 VDC | Load current | 0.01 to 1 A (at 40 ℃) | Inrush current resistivity | 6 A (10 ms) |
| Operate time | 2 ms max. |
|---|---|
| Release time | 2 ms max. |
| Output ON voltage drop | 2.5 V max. |
| Leakage current | 1 mA max. |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between input and output: 4000 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance | 1000 m/s2 |
| Ambient temperature (Operating) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85 % |
| Weight | Approx. 23 g |
| Other feature | Certified by UL, and CSA |
| Connecting socket | P7TF-05 |
As of November 10, 2025
- Outline drawing
As of November 10, 2025
As of November 10, 2025
- Connection diagra
As of November 10, 2025
External connections
As of November 10, 2025
- Characteristic chart
As of November 10, 2025

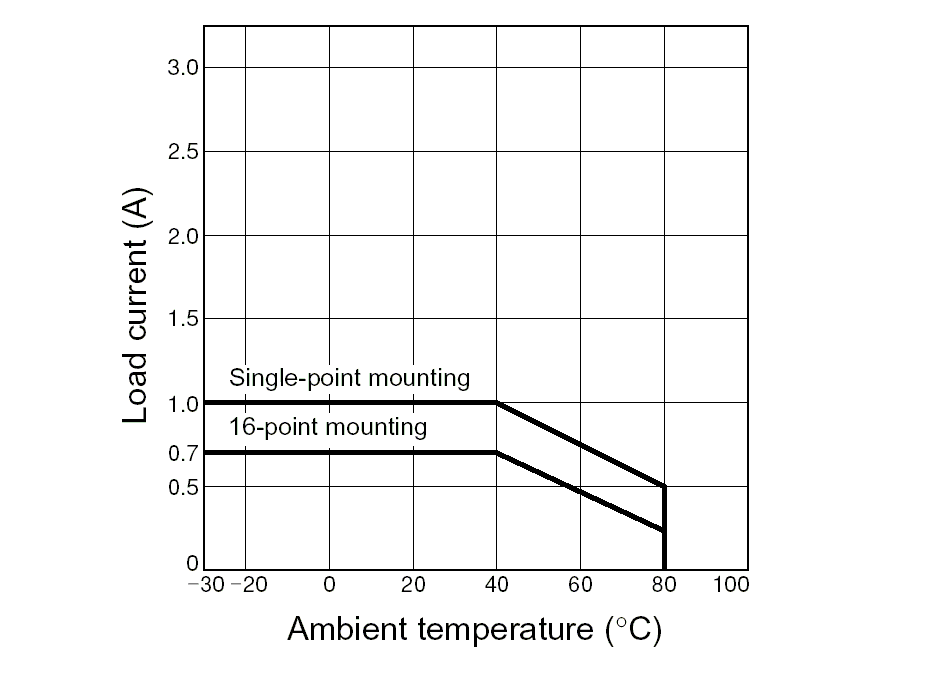

Load current-ambient temperature
Inrush current resistivity (Non-repetitive)
As of November 10, 2025
