G3TA-ODX02S-US DC24

Solid State Relays


I/O Solid State Relay, Output module, Photocoupler, Applied output load: 2 A at 5 to 48 VDC, Operating indicator Equipped, Rated voltage: 24 VDC

Product classification Relay compatible
Operating indicator Equipped
Rated voltage 24 VDC
Rated load voltage 5 to 48 VDC
Load current 0.01 to 2 A (at 60 ℃)
Terminal structure Plug-in terminal

Item list of G3TA

  • Ratings / Performance

As of July 25, 2024

Ratings
Product classificationRelay compatible
Isolation methodPhotocoupler
Operating indicatorEquipped
Terminal structurePlug-in terminal
MountingSocket
Case colorBlack
InputRated voltage24 VDC
Operating voltage range19.2 to 26.4 VDC
Input impedance6.5 kΩ±20%
Operate voltage19.2 V max.DC
Release voltage2 V min.DC
OutputRated load voltage5 to 48 VDC
Load voltage range4 to 60 VDC
Load current0.01 to 2 A (at 60 ℃)
Inrush current resistivity12 A (10 ms)
Performance
Operate time0.5 ms max.
Release time2 ms max.
Output ON voltage drop1.6 V max.
Leakage current1 mA max.
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strengthBetween input and output: 4000 VAC 50/60 Hz 1 min
Vibration resistance10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock resistance1000 m/s2
Ambient temperature (Operating)-30 to 80 ℃ (with no freezing or condensation)
Ambient temperature (Storage)-30 to 100 ℃ (with no freezing or condensation)
Ambient humidity (Operating)45 to 85 %
WeightApprox. 23 g
Other featureCertified by UL, and CSA
Connecting socketP7TF-05

As of July 25, 2024

  • Outline drawing

As of July 25, 2024

As of July 25, 2024

  • Connection diagra

As of July 25, 2024

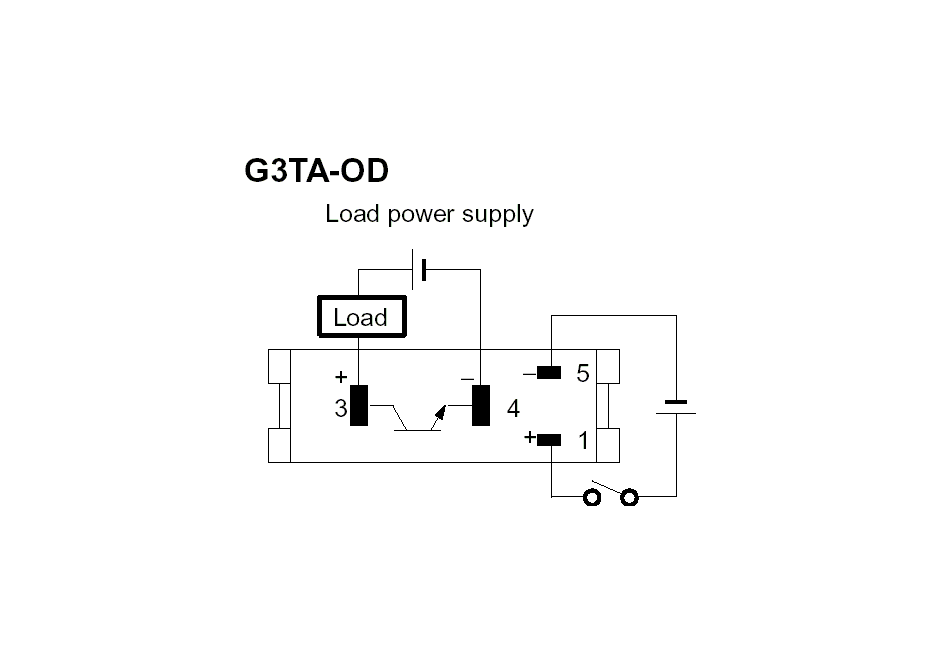

External connections

As of July 25, 2024

  • Characteristic chart

As of July 25, 2024

Load current-ambient temperature

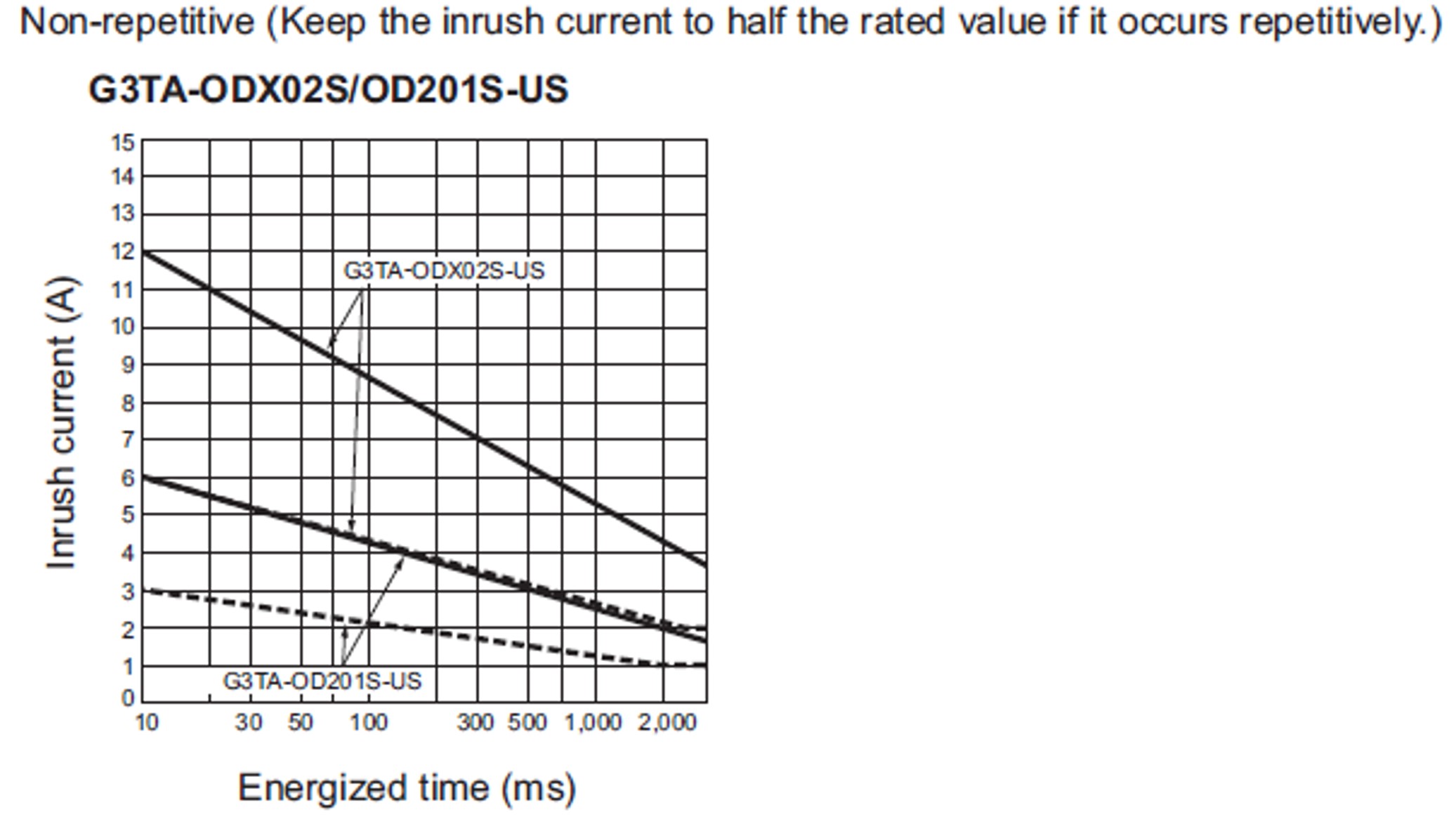

Inrush current resistivity (Non-repetitive)

As of July 25, 2024
