SitemapRotary Encoders Accessories
E69-[]
![E69-[]](/product/thumbnail/family/l_1468.jpg)
Data Sheet (472KB)
Quick links to 'E69-[]' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Coupling Dimensions
E69-C02B
Material: Glass-reinforced PBT
Applicable model: E6J-C
E69-C04B
Material: Glass-reinforced PBT
Applicable model: E6A2-C, E6J-A
E69-C06B
Material: Glass-reinforced PBT
Applicable model: E6B2-C, E6C2-C, E6D-C, E6C-N, E6CP-A
E69-C06M
Material: Extra-super duralumin
Applicable model: E6B2-C, E6C2-C, E6D-C, E6C-N, E6CP-A
E69-C10B
Material: Glass-reinforced PBT
Applicable model:E6F-C, E6F-A
E69-C10M
Material: Extra-super duralumin
Applicable model:E6F-C, E6F-A
E69-C08B
Material: Glass-reinforced PBT
Applicable model: E6C3-A, E6C3-C
E69-C68B
Model with Different End Diameter
Material: Glass-reinforced PBT
Applicable model: E6B2-C, E6C2-C, E6C3-C, E6D-C, E6C-N, E6CP-A, E6C3-A
E69-C610B
Model with Different End Diameter
Material: Glass-reinforced PBT
Applicable model: E6B2-C, E6C2-C, E6D-C, E6F-C, E6C-N, E6CP-A, E6F-A
![E69-[]_Dim1](img/1468_dm_10.gif)
Flange Dimensions
E69-FBA
Material: SPCC
Thickness: 3.2
Applicable model: E6B2-C
Note:Three phillips screws M3 × 6 provided
E69-FCA
Material: SPCC
Thickness: 3.2
Applicable model: E6C2-C, E6C-N
Note:Three phillips screws M4 × 8 provided
E69-FCA03
Material: SPCC
Thickness: 3.2
Applicable model: E6C3-A, E6C3-C
Note:Three phillips screws M4 × 8 provided

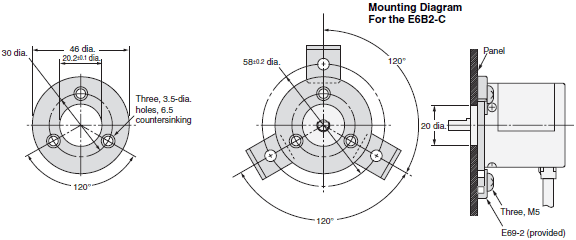

E69-FBA02
Material: SPCC
Thickness: 3.2
Applicable model: E6B2-C
Note:Three phillips screws M3 × 10 provided, E69-2 Servo Mounting Bracket provided

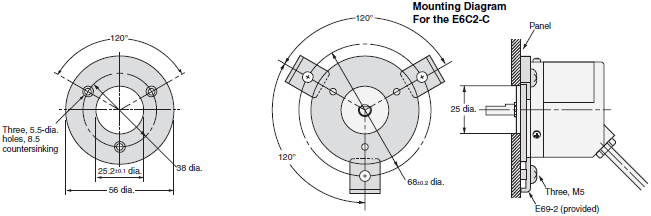

E69-FCA02
Material: SPCC
Thickness: 3.2
Applicable model: E6C2-C, E6C-N
Note:Three phillips screws M4 × 10 provided, E69-2 Servo Mounting Bracket provided

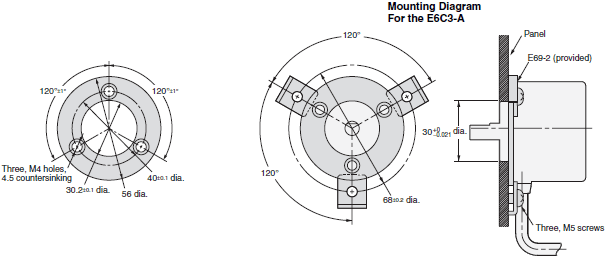

E69-FCA04
Material: SPCC
Thickness: 3.2
Applicable model: E6C3-C, E6C3-A
Note:Three phillips screws M4 × 8 provided, E69-2 Servo Mounting Bracket provided
Servo Mounting Bracket Dimensions
E69-1 (Three brackets in a set.)
Material: SPCC
Applicable model: E6A2-C
E69-2 (Three brackets in a set.)
Material: SPCC
Applicable model: E6B2-C, E6C2-C, E6C3-CWZ[]H, E6D-C, E6F-C, E6C-N, E6CP-A, E6C3-A, E6F-A
Caution: All units are in millimeters unless otherwise indicated.
