X

Terminals

Screw Terminals (-B)

Solder Terminal (-A)

("-A" is not included in the model numbers.)

Note:
1. Tighten the terminal screws to a torque of 0.78 to 1.18 N·m.
2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
3. In case of DC voltage, set the COM to the positive terminal.

Mounting

Use M4 mounting screws with plane washers or spring washers to securely mount the Switch. Tighten the screws to a torque of 1.18 to 1.47 N·m.

The Switch can be panel mounted, provided that the hexagonal nut of the actuator is tightened to a torque of 2.94 to 4.9 N·m.

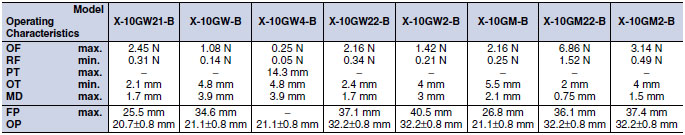

Dimensions and Operating Characteristics

The models, illustrations, and graphics are for screw-terminal models. (The dimensions for models that are omitted here are the same as for pin-plunger models.)

Pin Plunger
X-10G-B

Short Spring Plunger
X-10GD-B

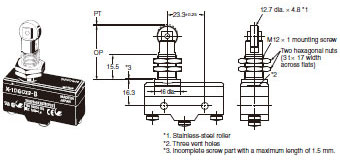

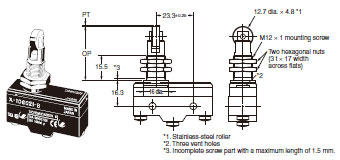

Panel Mount Roller Plunger
X-10GQ22-B

Note: Do not use both the M12 mounting screw and the mounting holes in the case at the same time. Doing so will cause stress to be applied to the Switch, possibly damaging the case or cover.

Leaf Spring
X-10GL-B

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

* Be sure to use the switch at the rated OT value of 1.6 mm.

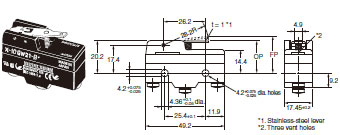

Short Hinge Lever
X-10GW21-B

Low-force Hinge Lever
X-10GW4-B

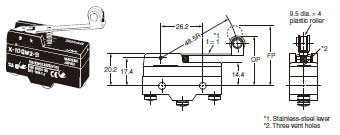

Hinge Roller Lever
X-10GW2-B

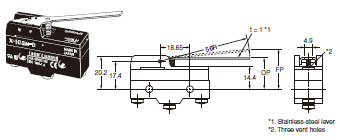

Reverse Short Hinge Lever
X-10GM22-B

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
