DZ
DPDT Basic Switch for Two Independent Circuit Control
Data Sheet (350KB)
Quick links OMRON IA Basic Switches in your country.
-
- Middle East
-
Please contact OMRON Europe B.V. in Netherlands.
DZ Pick up
Terminals
Solder Terminals (-1A)
Screw Terminals (-1B)
Dimensions and Operating Characteristics
The solder terminal model has a suffix "-1A" in its model number and its omitted dimensions are the same as the corresponding dimensions of the pin plunger model.
Pin Plunger

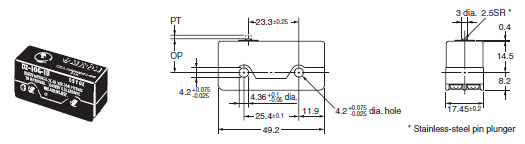

DZ-10G-1B
Hinge Lever

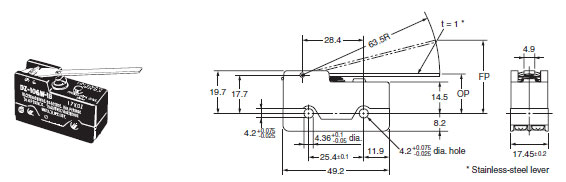

DZ-10GW-1B

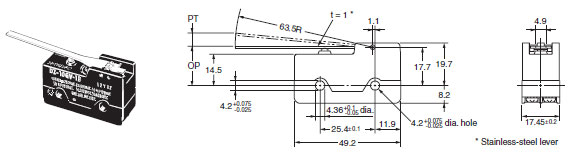

DZ-10GV-1B
Short Hinge Roller Lever

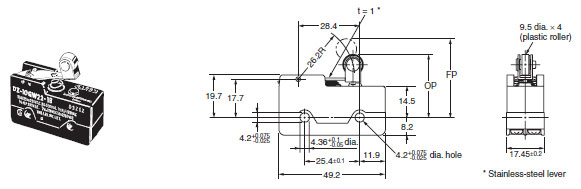

DZ-10GW22-1B

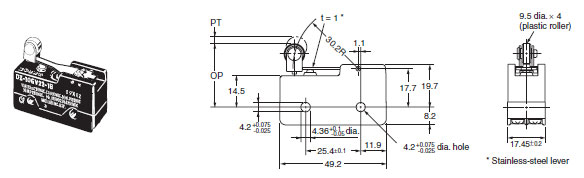

DZ-10GV22-1B
Hinge Roller Lever

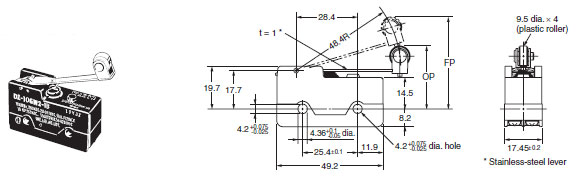

DZ-10GW2-1B

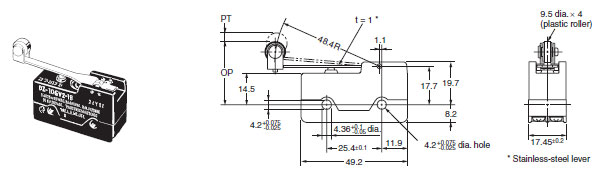

DZ-10GV2-1B
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Caution: All units are in millimeters unless otherwise indicated.
