Z / A / X / DZ Common Accessories

Common to Z, A, X, and DZ Models

Terminal Covers

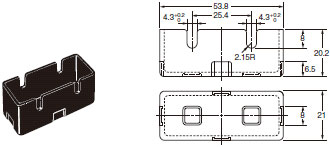

AP-A

Soldering Terminal Use
(Phenol Resin)

Note:The Cover has five thin, easy-to-separate portions for easy lead wire connections.

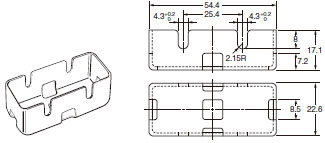

AP1-A

Soldering Terminal Use
(Metal Press Mold)

Note:The Cover has five holes for easy lead wire connections.

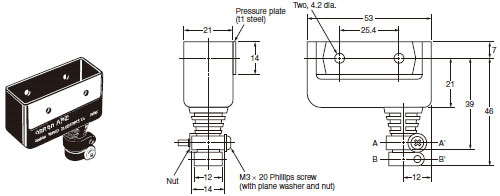

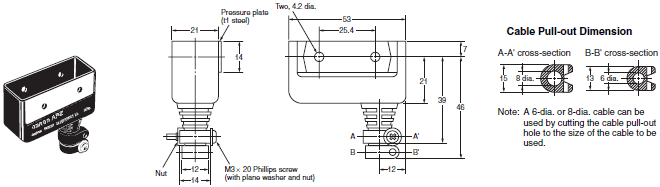

AP-Z

Soldering or Screw Terminal Use
(Vinyl Chloride)

Note:Each dimension has a tolerance of ±0.4 mm unless otherwise specified. (±0.8 mm for the AP-Z)

Separator

Common to Z, X, and DZ Models

Note:These Actuators are not provided with Switches.

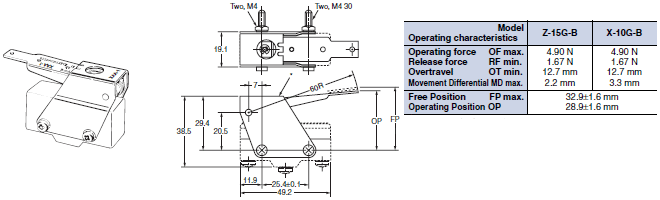

Hinge Lever
XAA-1

*Stainless steel

Note:This Actuator can be used with the Z-15G(-B) and X-10G(-B). When mounting the Switch, set the overtravel to between 32% and 100%, taking into consideration the operating body and the distance between the Actuator and the dog.

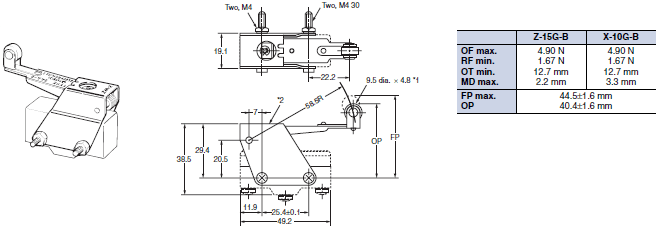

Hinge Roller Lever
ZAA-2

*1.Stainless steel roller

*2.Stainless steel

Note:This Actuator can be used with the Z-15G(-B) and ZX-10G(-B). When mounting the Switch, set the overtravel to between 32% and 100%, taking into consideration the operating body and the distance between the Actuator and the dog.

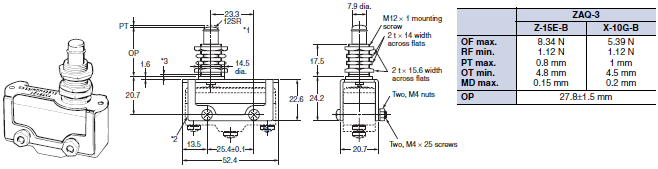

Short Panel Mount Plunger
ZAQ-3

*1.Stainless-steel pin plunger

*2.Bronze frame

*3.Incomplete screw section part with a maximum of 1.5 mm

Note:This Actuator (pin plunger) can be used with Standard Pin Plungers (Z-15G(-B), Z-15E(-B), X-10G(-B), DZ-10G-1A(-1B)) for the Z, X, and DZ models.

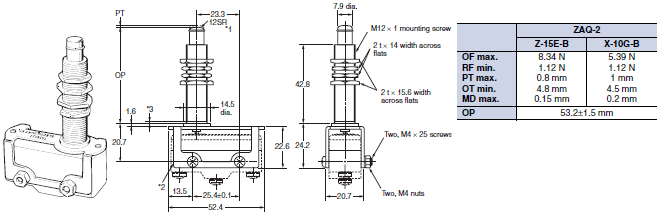

Medium Panel Mount Plunger
ZAQ-2

*1.Stainless-steel pin plunger

*2.Copper alloy frame

*3.Incomplete screw section part with a maximum of 1.5 mm

Note:This Actuator (pin plunger) can be used with Standard Pin Plungers (Z-15G(-B), Z-15E(-B), X-10G(-B), DZ-10G-1A(-1B)) for the Z, X, and DZ models.

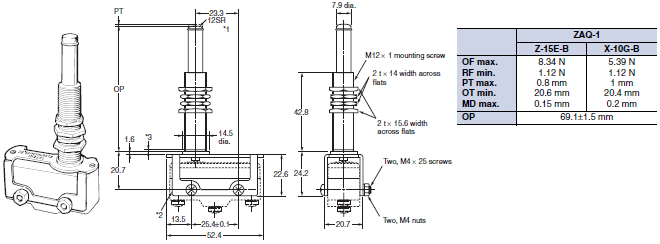

Long Panel Mount Plunger
ZAQ-1

*1.Stainless-steel pin plunger

*2.Copper alloy frame

*3.Incomplete screw section part with a maximum of 1.5 mm

Note:This Actuator (pin plunger) can be used with Standard Pin Plungers (Z-15G(-B), Z-15E(-B), X-10G(-B), DZ-10G-1A(-1B)) for the Z, X, and DZ models.

Panel Mount Roller Plunger

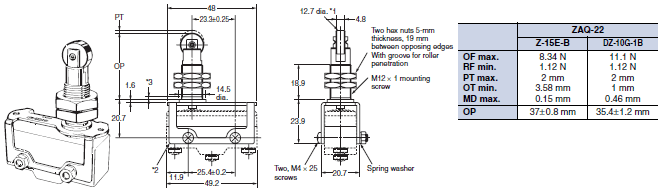

ZAQ-22

*1.Stainless-steel pin plunger

*2.Steel frame

*3.Incomplete screw section part with a maximum of 1.5 mm

Note:This Actuator (roller plunger) can be used with standard pin plungers (Z-15G(-B), Z-15E(-B), and DZ-10G-1A(-1B)). It cannot be used with X models.

Note:Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
