SitemapSeparate Amplifier Proximity Sensor with Adjustment Potentiometer
E2C / E2C-H
Data Sheet (1389KB)
Quick links to 'E2C / E2C-H' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Main Units
Sensor
E2C-CR5B
E2C-CR8A/-CR8B
E2C-X1A
E2C-C1A
E2C-X1R5A
E2C-X1R5AH*
E2C-X2A
E2C-X2AH*
E2C-X5A
E2C-X5AH*

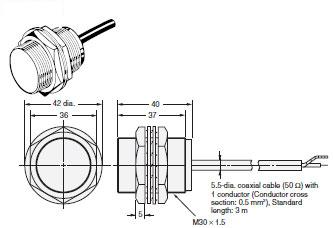

E2C-X10A
E2C-C20MA
Mounting Hole Dimensions
Amplifier Units
E2C-GE4A, -GE4B
E2C-GF4A, -GF4B
Applicable Sockets(Optional)
PYF08A
Hold-down Clip
PYC-A1

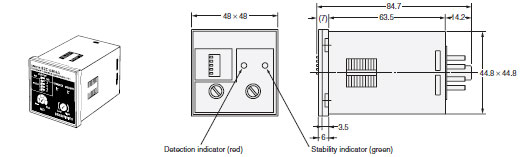

E2C-AK4A (11-pin)
E2C-AM4A (8-pin)
Applicable Sockets(Optional)
For E2C-AK4A (11-pin)
P2CF-11
P3GA-11
For E2C-AM4A (8-pin)
P2CF-08
P3G-08

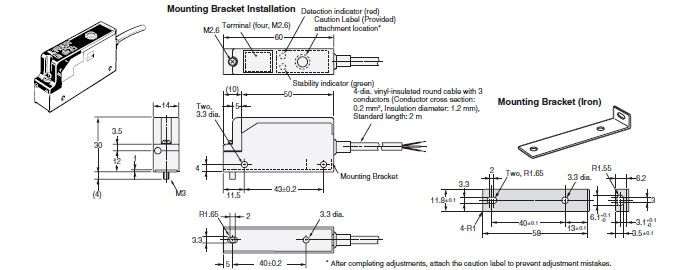

E2C-JC4A

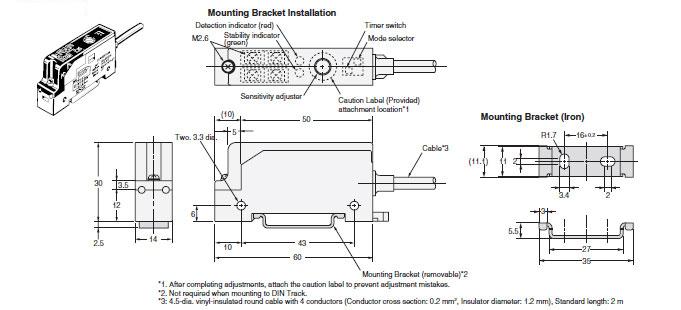

E2C-JC4AP
E2C-JC4[]H

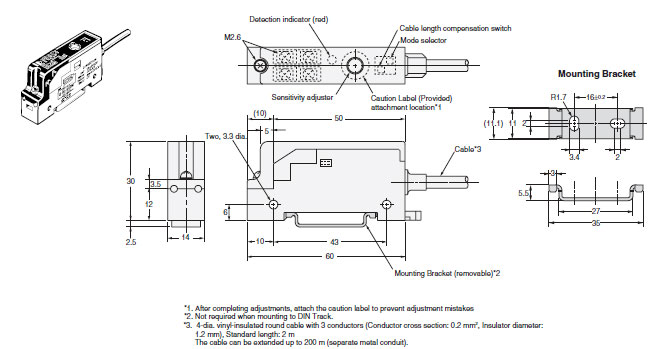

![E2C-JC4[]H_Dim](img/E2C_E2C-H_dm_15.jpg)

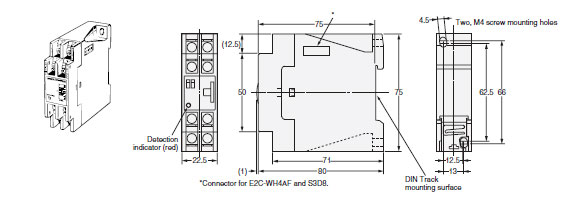

E2C-WH4A
Accessories(Optional)
Mounting Bracket
Mounting Bracket (for Unthreaded Cylindrical Models)
Y92E-F3R5 (for 3.5 dia.)
Y92E--F5R4 (for 5.4 dia.)
Y92E-F3R5
Y92E-F5R4
Front Connection Sockets

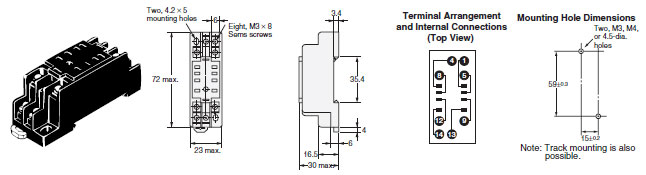

PYF08A

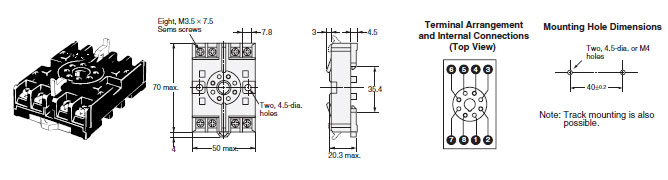

P2CF-08

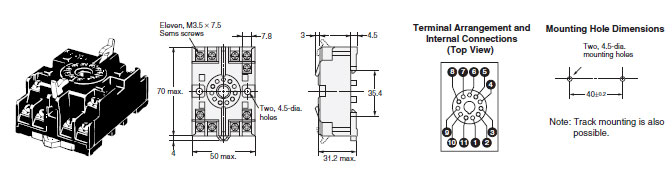

P2CF-11
Back Connection Sockets

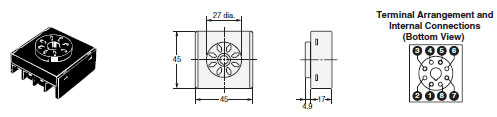

P3G-08

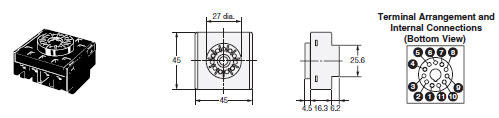

P3GA-11
Embedded Mounting Adapter (for E2C-AK4A/E2C-AM4A Amplifier Unit)

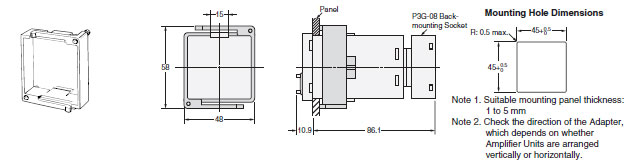

Y92F-30

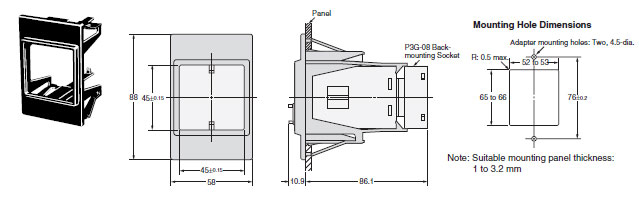

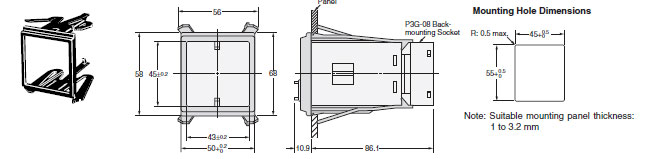

Y92F-70
Y92F-71
Caution: All units are in millimeters unless otherwise indicated.
