ZN-PD

Air Particle Sensor

ZN-PD

Air Particle Sensor for In-line Measurement (Smallest in the Industry)

Caution: All units are in millimeters unless otherwise indicated.

Air Particle Sensors

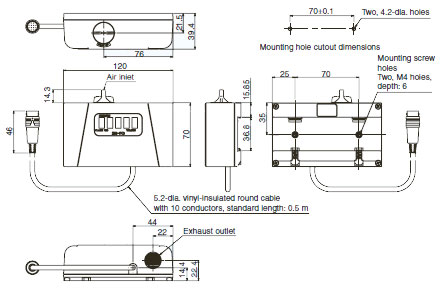

ZN-PD03

ZN-PD Dimensions 3 ZN-PD03_Dim

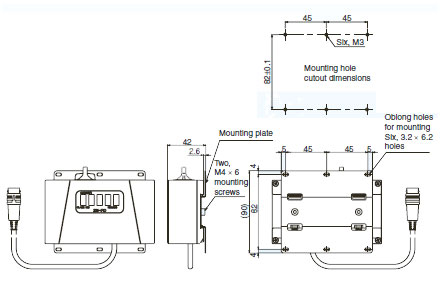

Sensor Head Mounting Tool
When ZN9-PB1 is used (Optional)

ZN-PD Dimensions 5 ZN-PD_Sensor Head Mounting Tool_Dim

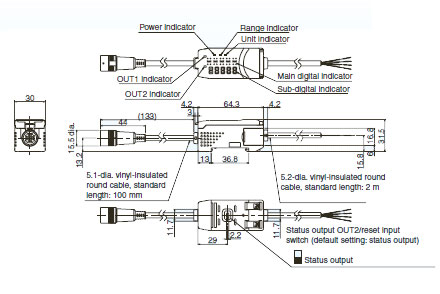

ZN-PDA11

ZN-PD Dimensions 7 ZN-PDA11_Dim

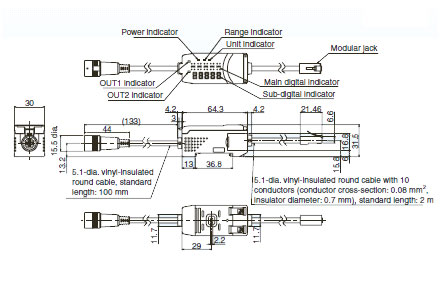

ZN-PDA12

ZN-PD Dimensions 9 ZN-PDA12_Dim

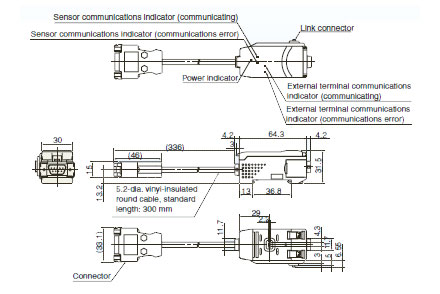

Interface Unit

ZN-SF11

ZN-PD Dimensions 12 ZN-SF11_Dim

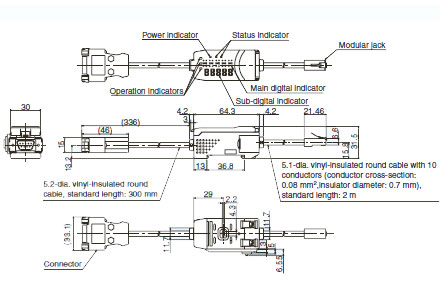

ZN-SF12

ZN-PD Dimensions 14 ZN-SF12_Dim
