E2EC-M / -Q

Stainless Steel Sensing Surface Amplifier Proximity Sensor

E2EC-M / -Q

Improved Durability with Stainless Steel Sensing Head

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

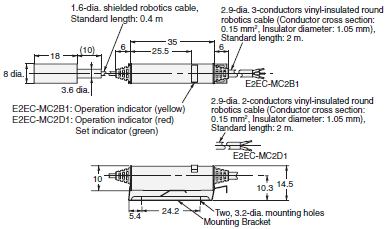

E2EC-MC2B1, E2EC-MC2D1

E2EC-M / -Q Dimensions 3

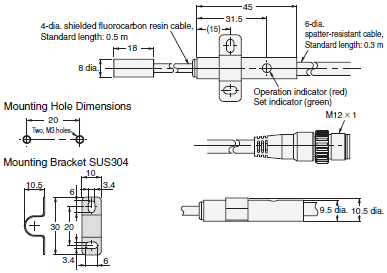

E2EC-QC2D1-M1GJ-T

E2EC-M / -Q Dimensions 4

Sensing Head Mounting Hole Dimensions

E2EC-M / -Q Dimensions 5
