General-purpose Basic Switch

X

Direct Current Switch with Built-in Magnetic Blowout

Caution: All units are in millimeters unless otherwise indicated.

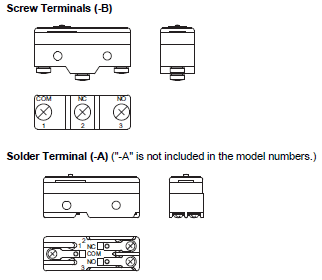

Terminals

Screw Terminals (-B)

X Dimensions 2

Solder Terminal (-A)

("-A" is not included in the model numbers.)

X Dimensions 3

Note: 1. Tighten the terminal screws to a torque of 0.78 to 1.18 Nm.
           2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
           3. In case of DC voltage, set the COM to the positive terminal.

Mounting

Use M4 mounting screws with plane washers or spring washers to securely mount the Switch. Tighten the screws to a torque of 1.18 to 1.47 Nm.

X Dimensions 6

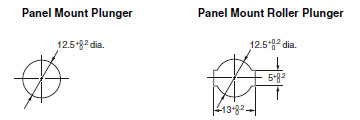

The Switch can be panel mounted, provided that the hexagonal nut of the actuator is tightened to a torque of 2.94 to 4.9 Nm.

X Dimensions 7

The models, illustrations, and graphics are for screw-terminal models. (The dimensions for models that are omitted here are the same as for pin-plunger models.)

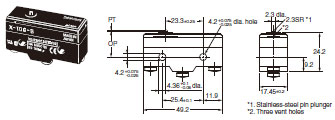

Pin Plunger
X-10G-B

X Dimensions 9

Slim Spring Plunger
X-10GS-B

X Dimensions 10

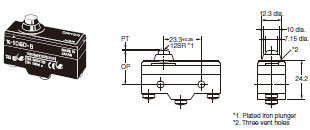

Short Spring Plunger
X-10GD-B

X Dimensions 11

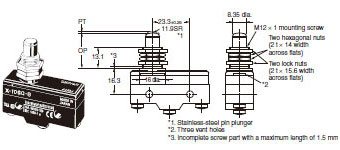

Panel Mount Plunger
X-10GQ-B

X Dimensions 12

Note: Do not use both the M12 mounting screw and the mounting holes in the case at the same time. Doing so will cause
           stress to be applied to the Switch, possibly damaging the case or cover.

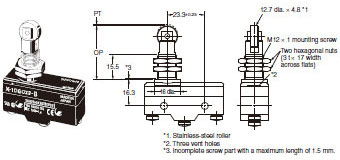

Panel Mount Roller Plunger
X-10GQ22-B

X Dimensions 13

Note: Do not use both the M12 mounting screw and the mounting holes in the case at the same time. Doing so will cause
           stress to be applied to the Switch, possibly damaging the case or cover.

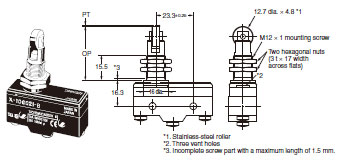

Panel Mount Cross Roller Plunger
X-10GQ21-B

X Dimensions 14

Note: Do not use both the M12 mounting screw and the mounting holes in the case at the same time. Doing so will cause
           stress to be applied to the Switch, possibly damaging the case or cover.

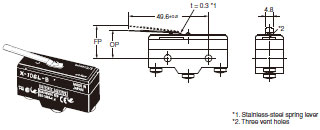

Leaf Spring
X-10GL-B

X Dimensions 15

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

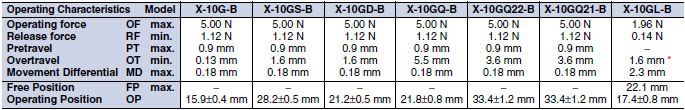

X Dimensions 17

* Be sure to use the switch at the rated OT value of 1.6 mm.

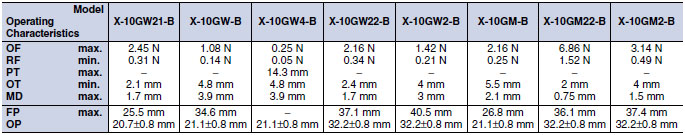

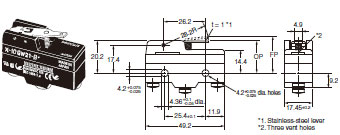

Short Hinge Lever
X-10GW21-B

X Dimensions 18

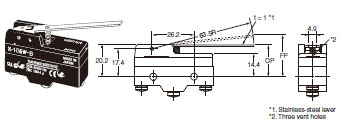

Hinge Lever
X-10GW-B

X Dimensions 19

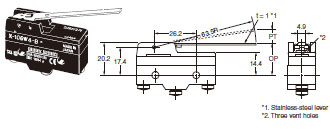

Low-force Hinge Lever
X-10GW4-B

X Dimensions 20

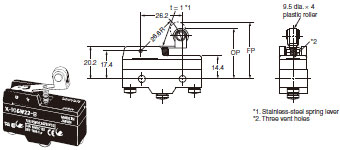

Short Hinge Roller Lever
X-10GW22-B

X Dimensions 21

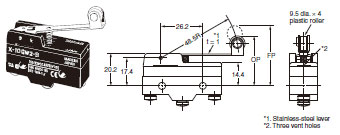

Hinge Roller Lever
X-10GW2-B

X Dimensions 22

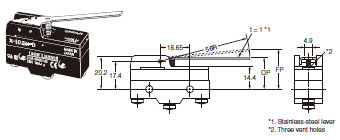

Reverse Hinge Lever
X-10GM-B

X Dimensions 23

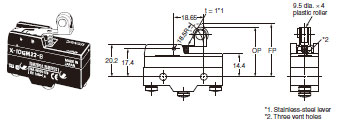

Reverse Short Hinge Lever
X-10GM22-B

X Dimensions 24

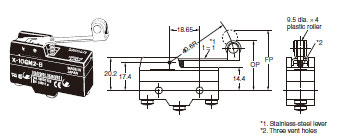

Reverse Hinge Roller Lever
X-10GM2-B

X Dimensions 25

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

X Dimensions 27

Terminal Covers

AP-A

Soldering Terminal Use (Phenol Resin)

X Dimensions 30

Note: The Cover has five thin, easy-to-separate portions for easy lead wire connections.

AP-B

Screw Terminal Use (Phenol Resin)

X Dimensions 32

Note: The Cover has six thin, easy-to-separate portions for easy lead wire connections.

AP1-A

Soldering Terminal Use (Metal Press Mold)

X Dimensions 34

Note: The Cover has five holes for easy lead wire connections.

AP1-B

Screw Terminal Use (Metal Press Mold)

X Dimensions 36

Note: The Cover has six holes for easy lead wire connections.

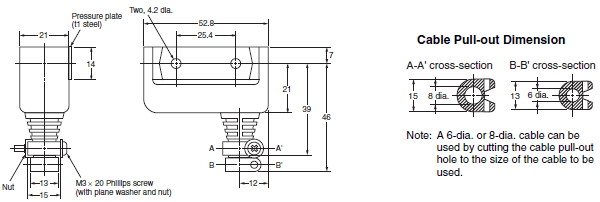

AP-Z

Soldering or Screw Terminal Use (Vinyl Chloride)

X Dimensions 37

Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified. (±0.8 mm for the AP-Z)

Separator

SEPARATOR FOR Z

X Dimensions 40

Note: 1. Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
          2. The material is EAVTC (Epoxide Alkyd Varnished Tetron Cloth) and its heat-resisting temperature is 130°C.

Actuators

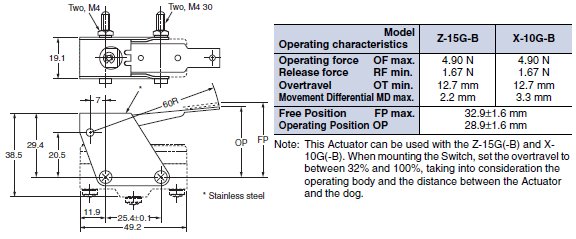

Hinge Lever
XAA-1

X Dimensions 42

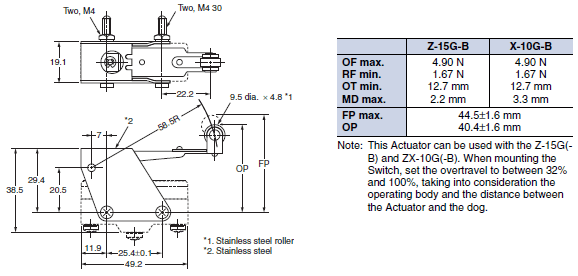

Hinge Roller Lever
ZAA-2

X Dimensions 43

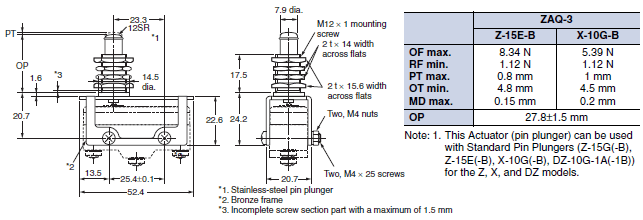

Short Panel Mount Plunger
ZAQ-3

X Dimensions 44

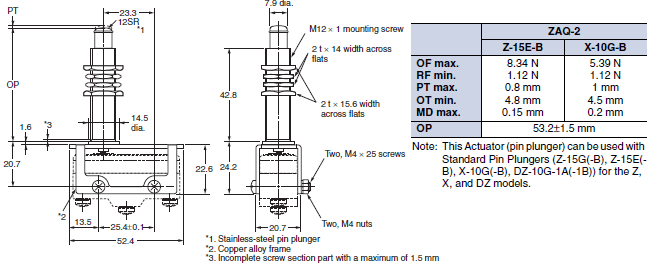

Medium Panel Mount Plunger
ZAQ-2

X Dimensions 45

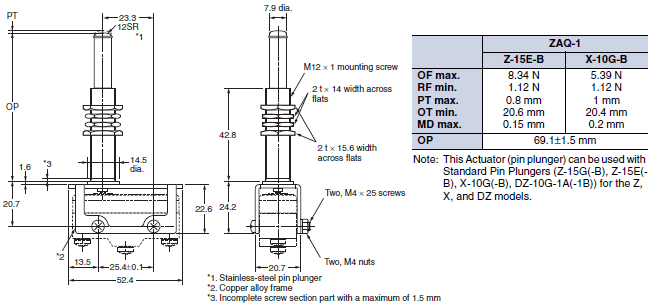

Long Panel Mount Plunger
ZAQ-1

X Dimensions 46

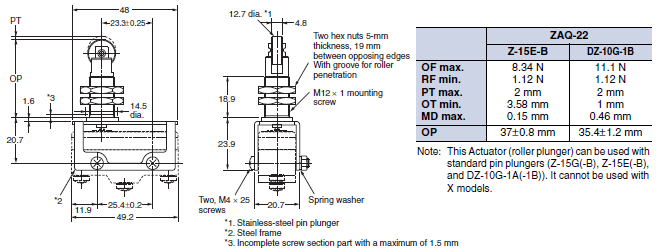

Panel Mount Roller Plunger
ZAQ-22

X Dimensions 47

Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
