NX-Series NX701 CPU Units

NX701-[][][][]

Ideal for large-scale, fast, and highly-accurate control with up to 256 axes.

(Unit: mm)

CPU Units

NX701-[][][][]

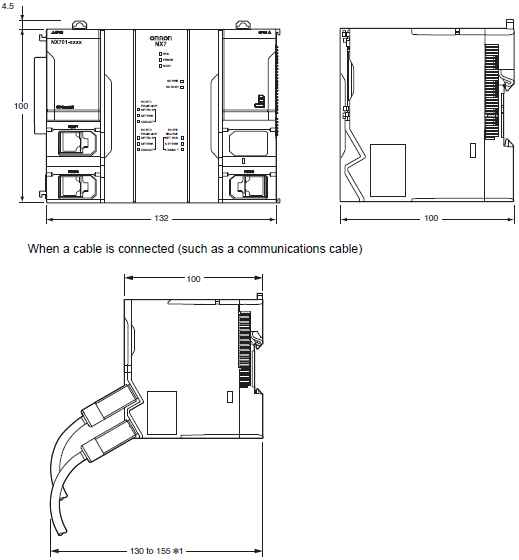

NX701-[][][][] Dimensions 2

*1. This is the dimension from the back of the Unit to the communications cables.
      130 mm: When an MPS588-C Connector is used.
      155 mm: When an XS6G-T421-1 Connector is used.
*2. This dimension depends on the specifications of the commercially available USB cable.
      Check the specifications of the USB cable that is used.

Power Supply Units

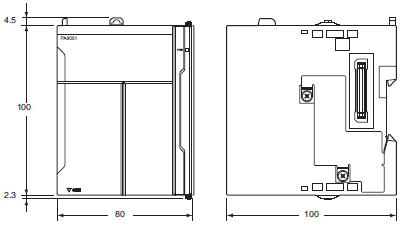

NX-PA9001

NX701-[][][][] Dimensions 4

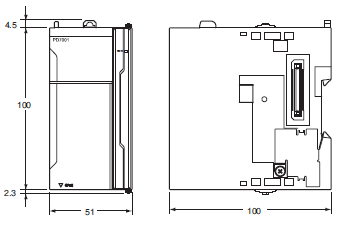

NX-PD7001

NX701-[][][][] Dimensions 5

End Cover (included with CPU Units)

NX-END01

NX701-[][][][] Dimensions 7
