QX-870 Series

Laser Barcode Scanner

QX-870 Series

Industrial Raster Laser Barcode Scanner

• Scans / second: 300 to 1400

• Read Range: 25 to 762 mm

• Optional Embedded Ethernet TCP / IP & EtherNet / IP

• IP65 Enclosure

QX-870 Series Features 2

ESP®Easy Setup Program: Single-point software solution provides quick and easy setup and configuration of all OMRON Microscan readers.

QX-870 Series Features 3

EZ Button: This performs reader setup and configuration with no computer required.

QX-870 Series Features 4

Visible Indicators: Performance indicators include “good read” green flash and LEDs.

QX-870 Series Features 5

Sweeping Raster: This programmable feature enables the reader for multiple symbols at varying distances and locations.

QX-870 Series Features 6

QX Platform: Quick Connect system and X-Mode technology combine to provide simple connectivity, networking, and high performance decoding.

Quick Connect System

• Plug and play setup
• Single or multi-scanner solutions

X-Mode Technology

• Decodes damaged, poorly printed, or misaligned codes
• Ensures high read rates and throughput

High Performance

Aggressive decoding capabilities allow reliable reading of barcodes out to 762 mm, at up to a 254 mm beam width.

Intelligent Raster

In addition to sweep angle and speed controls, the QX-870 features a programmable raster with intelligent auto framing technology. Advanced software will automatically frame the raster height and width of the laser to match the barcode, allowing selective targeting of codes within a single read cycle.

Ethernet Protocols

The QX-870 includes optional embedded Ethernet TCP / IP and EtherNet / IP for high speed communication.

Application Examples

• Any industrial environment from light to heavy duty
• Automotive assembly
• Packaging and sortation
• Electronics production
• Embedded within machinery

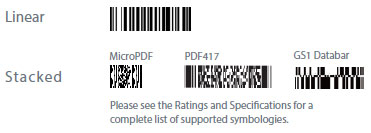

QX–870: Available Codes

QX-870 Series Features 13
