F3SG-SR Series

Safety Light Curtain

F3SG-SR Series

The best ever light curtain

Safety Light Curtain model search

Choose your safety light curtain and accessories from our F3SG Series through a 4-step process.

about this Product Family

This series redefines safety at manufacturing sites

Manufacturers now need to manage globalization and flexible production.
That's why we have developed our F3SG-SR/PG Series.
This series offers a complete lineup of light curtains that comply with global safety standards and a wide range of functionality that covers all aspects from design through to maintenance.
The F3SG-SR/PG Series helps manufacturers build safety systems.

Design -Easy design of line safety-

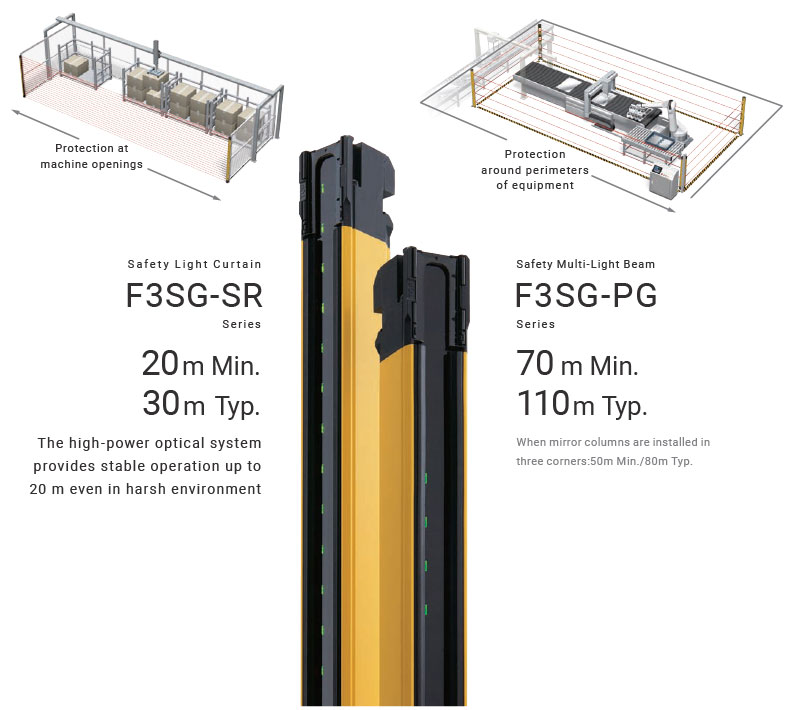

One series covers all protection applications—from machine openings to perimeters of equipment

Standardize mechanical design across production lines and eliminate complexity of selection and design.

F3SG-SR Series Features 4
F3SG-SR Series Features 5

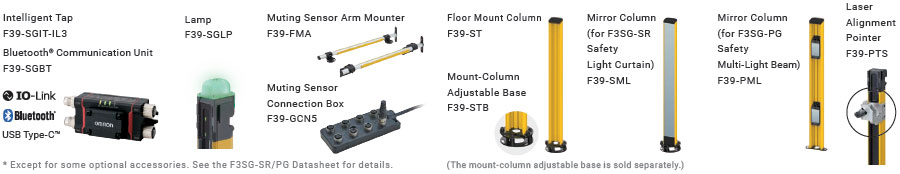

Common accessories including cables and brackets *

The light curtains share common accessories for ease of design and retrofit ting of production lines.

F3SG-SR Series Features 6

Helps build safety systems for machines all over the world

F3SG-SR Series Features 7

Design -Flexible design for equipment-

Industry's broadest* lineup for flexible production line design

Create flexible design plans to suit your equipment requirements.
* Based on Omron investigation in June 2018.

Long operating range thanks to unique optical design

The long-distance sensing capability enables reliable detection even in harsh environments.

F3SG-SR Series Features 10

Omron’s unique compact design

The F3SG-SR Safety Light Curtain and F3SG-PG Safety Multi-Light Beam share the same compact housing.
This makes mechanical design more flexible.
* Compared with Omron ORT’s PA46 Per imeter Access Guarding Device.
   (Based on Omron investigation in June 2018)

F3SG-SR Series Features 11

Easy line layout changes

Simply replace a light curtain using the same accessories because the F3SG-SR Series and F3SG-PG Series share the same housing. There is no need to select and install accessories for a new light curtain.

Example: In order to secure a working space by installing the light curtain closer to the machine,
               the perimeter guarding model is replaced with the finger protection model

F3SG-SR Series Features 12

Just replace the light curtain with the same protective height*

F3SG-SR Series Features 13

* Except for some models and accessories. See Catalog and following for details.

Perfect fit

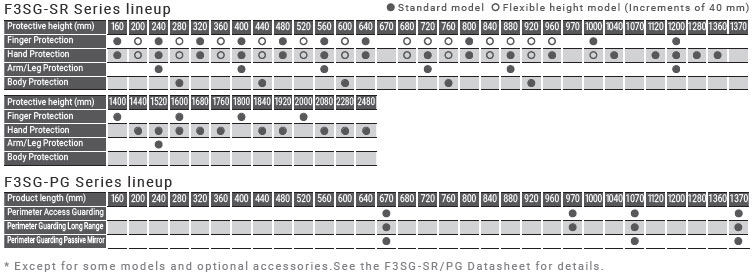

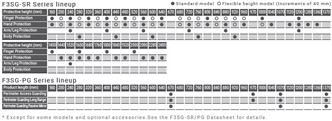

Protective heights are available in increments of 40 mm up to 1,000 mm*. The perfect protective height for any protected area ensures safety and eliminates the need for additional measures.

F3SG-SR Series Features 14

Protection without dead space*

The F3SG-SR Series eliminates dead space that previously existed even when light curtains are series-connected or U-shape connected. Safer systems can be designed.

F3SG-SR Series Features 15

Simple wiring for flexible design

The F3SG-PG* Perimeter Guarding Deflect Mirror only requires wiring to one end for protection around perimeters of equipment , reducing wiring duct design and wiring time.

F3SG-SR Series Features 16

* Scheduled for release

Two different synchronization systems

Choose from two different methods of synchronization between the emitter and receiver to suit your equipment .

F3SG-SR Series Features 18

Set-up -Simple beam adjustment-

Color indication of beam status for quick and easy beam adjustment

Reduce beam adjustment time.

Area Beam Indicator (ABI) for an at-a-glance check of beam status [Patent pending]

The ON or OFF state of the light curtain and low light intensity can be checked.
The ABI also facilitates fine adjustment of beams for long-distance sensing.

F3SG-SR Series Features 21
F3SG-SR Series Features 22

Set-up -Easy installation and angle adjustment-

A variety of accessories for easy installation and angle adjustment

Reduce installation time and easily adjust beams after installation without relying on the expertise of experienced engineers.

Easy beam adjustment after installation

F3SG-SR Series Features 25
F3SG-SR Series Features 26

Set-up -Various options to reduce wiring-

Reduced wiring system for various equipment

Wiring work during line installation and maintenance can be greatly reduced.

Simple wiring around large equipment

F3SG-SR Series Features 29
F3SG-SR Series Features 30

One cable connection to control panel

Options provide simple wiring for muting.

F3SG-SR Series Features 31
F3SG-SR Series Features 32

Operation -Reduction in unwanted machine stoppages-

Robustness for operation in harsh environments

Specifications suitable for use in any environment contribute to stable operation.

Light curtains tend to malfunction in harsh environments where safety measures are required.

F3SG-SR Series Features 35
F3SG-SR Series Features 36

Maintenance -Maintenance with no special skills required-

Easy maintenance

Even inexperienced operators can easily check status and replace light curtains.

Easy error diagnosis with clear color indicators

The light curtain status can be checked at a glance.

F3SG-SR Series Features 39

Back up and restore settings with Intelligent Tap

Replacement and set ting time during maintenance can be reduce d to 1/10 or less*.

F3SG-SR Series Features 40

Maintenance -Quick maintenance through ICT-

ICT facilitates more detailed data monitoring

There is no need for a PC on site to check the light curtain status.

F3SG-SR Series Features 43
F3SG-SR Series Features 44
