E3C

Compact Head Amplifier-separated Photoelectric Sensor

E3C

Thin, Compact Head Saves Space and Mounts Closely. Built-in Interference Protection Provided.

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Sensor Units

E3C-S10

E3C Dimensions 4

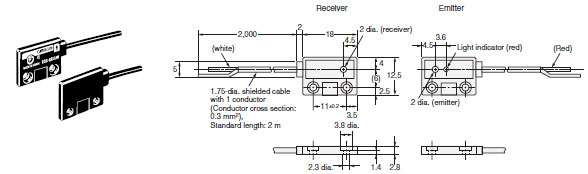

Emitter: E3C-S10
Receiver: E3C-S10D

E3C-S50

E3C Dimensions 5

Emitter: E3C-S50L
Receiver: E3C-S50D

E3C-1

E3C Dimensions 6

Emitter: E3C-1L
Receiver: E3C-1D

E3C-2

E3C Dimensions 7

Emitter: E3C-2L
Receiver: E3C-2D

E3C-S20W

E3C Dimensions 8

Emitter: E3C-S20LW
Receiver: E3C-S20DW

E3C-S30W

E3C Dimensions 9

Emitter: E3C-S30LW
Receiver: E3C-S30DW

E3C-S30T

E3C Dimensions 10

Emitter: E3C-S30LT
Receiver: E3C-S30DT

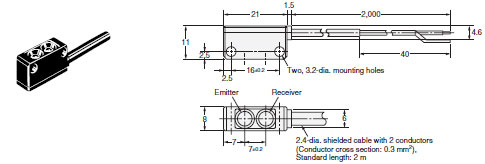

E3C-DS10

E3C Dimensions 11

E3C-DS5W

E3C Dimensions 12

E3C-DS10T

E3C Dimensions 13

E3C-LS3R

E3C Dimensions 14

Amplifier Units

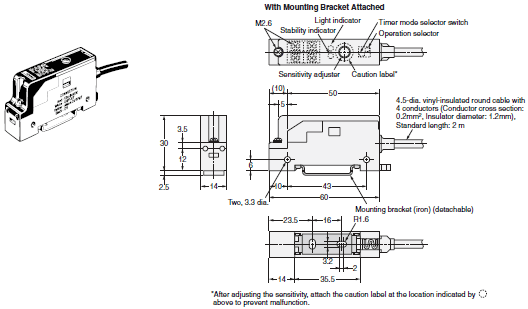

E3C-JC4P

E3C Dimensions 16
