EE-SPW311 / 411

Long-distance Through-beam Photomicrosensor

EE-SPW311 / 411

Through-beam Photomicrosensor with a sensing distance as long as 1 m.

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

EE-SPW311
EE-SPW411

EE-SPW311 / 411 Dimensions 3

Accessories (Included)

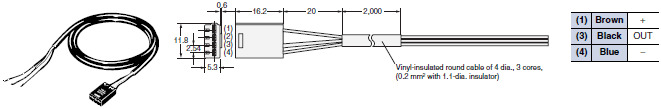

Connector with Cable for Emitter
EE-1006L

EE-SPW311 / 411 Dimensions 5

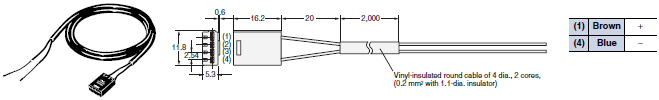

Connector with Cable for Receiver
EE-1006D

EE-SPW311 / 411 Dimensions 6

Note: These cables can also be ordered separately.
