E6F-C

Incremental 60-mm-dia. Rotary Encoder

E6F-C

Rugged Rotary Encoder

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

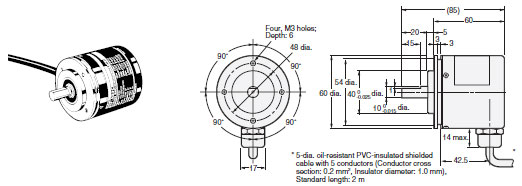

Encoder

E6F-CWZ5G

E6F-C Dimensions 3

Accessories (Order Separately)

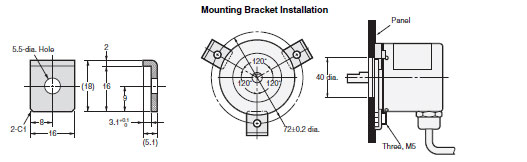

Servo Mounting Bracket
E69-2

E6F-C Dimensions 5
