E3T-CD13 2M

Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier


Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 3 to 50 mm, Light-ON, PNP, Pre-wired models (2 m), Infrared LED (870 nm)

Sensing method Diffuse-reflective
Sensing distance White paper 100 x 100 mm: 3 to 50 mm
Light source Infrared LED (870 nm)
Connection method Pre-wired models

Item list of E3T

  • Ratings/Performance
ShapeCylinder type
Sensing methodDiffuse-reflective
Sensing distanceWhite paper 100 x 100 mm: 3 to 50 mm
Differential distance15% max. of sensing distance
Light sourceInfrared LED (870 nm)
Power supply voltage12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption20 mA max.
Control outputPNP open collector
30 VDC max.
80 mA max.
Residual voltage: 1 V max.

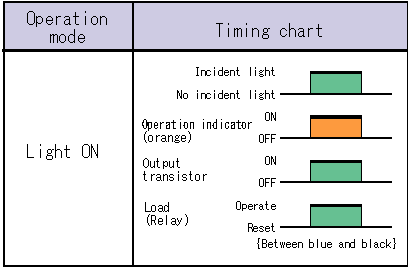

Operation modeLight-ON
Protective circuitOutput short-cut protection, Power supply reverse polarity protection
Response timeOperate or reset: 0.5 ms max.
Ambient illuminanceIncandescent lamp: 3,000 lx max.
Ambient temperature range (Operating)-25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage)-30 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating)35 to 85% (with no condensation)
Ambient humidity range (Strage)35 to 85% (with no condensation)
Insulation resistance20 MΩ min. (500 VDC megger)
Dielectric strength500 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP65
Connection methodPre-wired models (Cable length 2 m)
IndicatorOperation indicator (orange), Stability indicator (green)
WeightPackage: Approx. 40 g
AccessoriesInstruction manual, Hexagonal nuts, Toothed washers, Adjustment driver
MaterialCase: SUS303
Lens: Polysulphone
Display: Epoxy
Hexagon Nut: SUS303
Toothed washers: SUS303

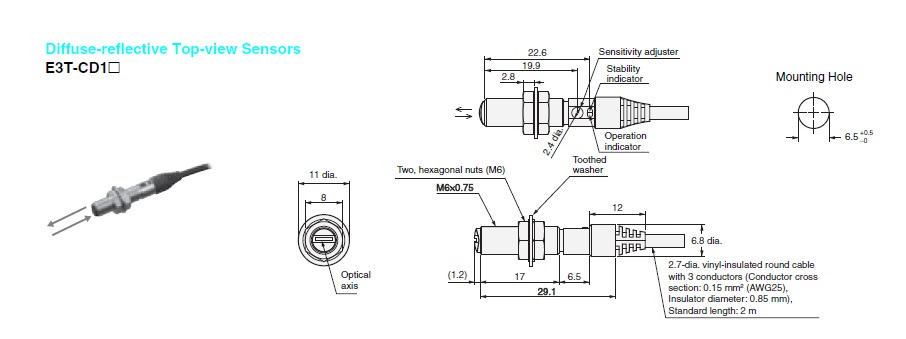

  • Dimensions

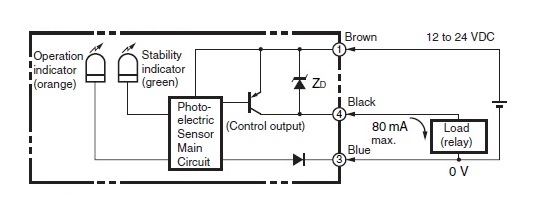

  • Output circuit diagram

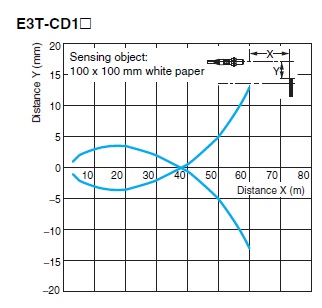

  • Operating range
