XS2F-D422-GD0

Round Water-resistant Connectors (M12 Threads)


M12 Threads Water-resistant Connectors, for DC, Fireretardant, PVC robot cable (5 m), Right-angle, 4 pole

Type Water-resistant Connectors
Application for DC
Number of poles 4 pole
Location of lead output Right-angle
Fastening method M12 Threads
Cable length 5 m

Item list of XS2

  • Ratings/Performance
TypeWater-resistant Connectors
Applicationfor DC
Number of poles4 pole
Plug/socketSocket
Location of lead outputRight-angle
Fastening methodM12 Threads
Rated voltage250 VDC
Rated current4 A
Contact resistance40 mΩ max. (20 mV max, 100 mA max.)
Cable specificationsTypeFireretardant, PVC robot cable
Outer diameter6 mm dia.
Number of wires2 cores
Cable length5 m
Ambient temperature range (Operating)0 to 70 ℃
Ambient humidity range (Operating)20 to 85%
Insulation resistance1000 MΩ min. (at 500 VDC)
Dielectric strength1,500 VAC 1 min (Leakage current 1mA max.)
Degree of protectionIP67
MaterialPin block: PBT resin
Cover: PBT resin
Contact: Copper alloy (gold plating)
Fixture: Copper alloy (Nickel platin)
O-ring: Rubber parts
Insertion durability200 time

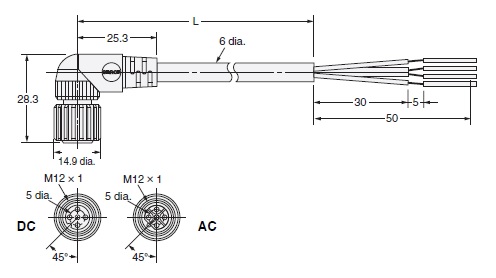

  • Dimensions

Series

Round Water-resistant Connectors (M12 Threads)

XS2
