TL-L100-7 1M

Ultra-long Sensing-distance Proximity Sensor


Ultra-long Sensing-distance Proximity Sensor, Column type, Flat-surface mounting, Sensing distance: 100 mm, Pre-wired model, 1 m

Sensing head size 106 dia.
Type Cylinder type, Differential coil type
Power source DC Three-wires models
Sensing distance 100 mm ±10%
Setting distance 0 to 80 mm
Operation mode NO

Item list of TL-L

  • Ratings/Performance
Sensing head size106 dia.
TypeCylinder type, Differential coil type
Power sourceDC Three-wires models
Sensing distance100 mm ±10%
Setting distance0 to 80 mm
Differential distance15% max. of sensing distance
Sensing objectFerrous metal, Non-ferrous metal
Standard sensing objectIron 200 x 200 x 1 mm
Response time100 ms max.
Power supply voltage10 to 30 VDC ripple (p-p) 10% max.
Operating voltage range10 to 30 VDC
Current consumption40 mA max.
Control output (Output type)NPN
Control output (Switching capacity)200 mA max.
Control output (Residual voltage)1 V max.
IndicatorOperation indicator (red)
Operation modeNO
Protective circuitReverse polarity protection
Surge suppressor
Ambient temperature (Operating)-25 to 55 ℃
Ambient temperature (Storage)-25 to 55 ℃
Ambient humidity (Operating)35 to 95 %
Ambient humidity (Storage)35 to 95 %
Temperature influence±30% max. of sensing distance at 20 ℃ in the temperature range of -10 to 40 ℃
Voltage influence±5% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistanceBetween charged parts and the case: 5 MΩ min. (at 500 VDC)
Dielectric strengthBetween charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 200 m/s2 10 times each in X, Y, and Z directions
Degree of protectionIEC: IP66
Connection methodPre-wired models (1 m)
WeightPackage: Approx. 1500 g
MaterialCase: Aluminum diecast
Sensing surface: Epoxy resin
AccessoriesInstruction manual
  • Dimensions

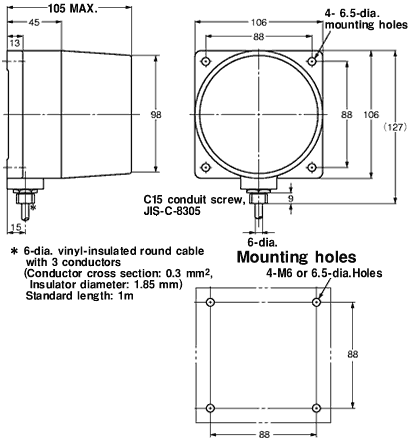

Dimensions

  • Output circuit

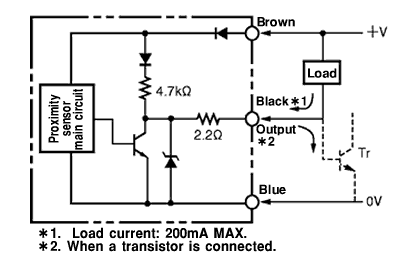

Output circuit

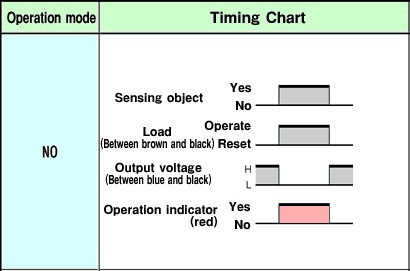

Timing chart

  • Mutual interference

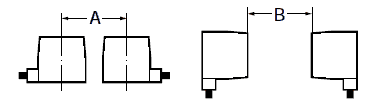

Mutual interference

A: 300 mm min., B: 300 mm min.

  • Effects of surrounding metals

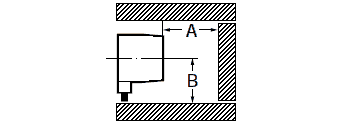

Effects of surrounding metals

A: 250 mm min., B: 250 mm min.

  • Characteristic chart

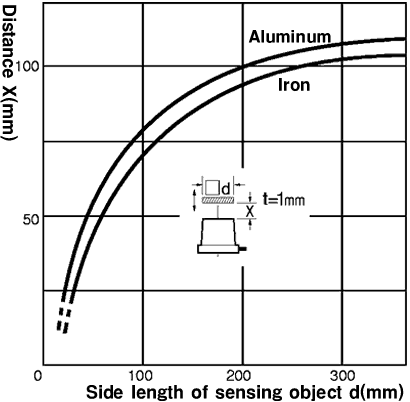

Sensing distance vs. size and material of sensing object

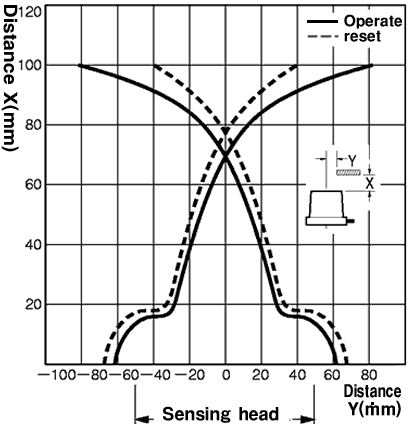

Sensing range
