XS2F-D521-DG0-A

Round Water-resistant Connectors (M12 Threads)


Socket on One Cable End, for DC, 5 poles, Straight, Standard PVC cable, 2 m

Type Water-resistant Connectors
Application for DC
Number of poles 5 pole
Location of lead output Straight
Fastening method M12 Threads
Cable length 2 m

Item list of XS2

  • Ratings/Performance
TypeWater-resistant Connectors
Applicationfor DC
Number of poles5 pole
Plug/socketSocket
Location of lead outputStraight
Fastening methodM12 Threads
Rated voltage250 VDC
Rated current4 A
Contact resistance40 mΩ max. (20 mV max, 100 mA max.)
Cable specificationsTypeStandard PVC cable
Outer diameter6 mm dia.
Number of wires5 cores
Cable length2 m
Ambient temperature range (Operating)-25 to 70 ℃
Ambient humidity range (Operating)20 to 85 %
Insulation resistance1000 MΩ min. (at 500 VDC)
Dielectric strength1,500 VAC 1 min (Leakage current 1mA max.)
Degree of protectionIP67
MaterialPin block: PBT resin
Cover: PBT resin
Contact: Copper alloy (gold plating)
Fixture: Copper alloy (Nickel platin)
O-ring: Rubber parts
Insertion durability200 time

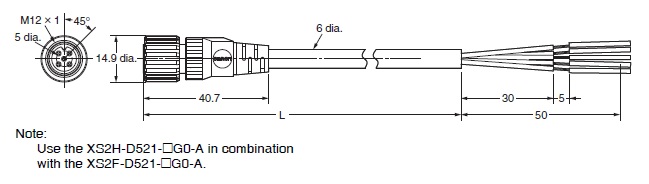

  • Dimensions

Series

Round Water-resistant Connectors (M12 Threads)

XS2
