XS2G-D5S7

Round Water-resistant Connectors (M12 Threads)


M12 Threads Water-resistant Connectors, for DC, Straight, 5 pole, Screw, Applicable cable diameter 7 to 8 mm dia.

Type Water-resistant Connectors
Application for DC
Number of poles 5 pole
Location of lead output Straight
Fastening method M12 Threads

Item list of XS2

  • Ratings/Performance
TypeWater-resistant Connectors
Applicationfor DC
Number of poles5 pole
Plug/socketPlug
Location of lead outputStraight
Fastening methodM12 Threads
Rated voltage250 VDC
Rated current4 A
Contact resistance40 mΩ max. (20 mV max, 100 mA max.)
Applicable cableOuter diameter7 to 8 mm dia.
Ambient temperature range (Operating)-25 to 70 ℃
Ambient humidity range (Operating)20 to 85% RH
Insulation resistance1000 MΩ min. (at 500 VDC)
Dielectric strength1,500 VAC 1 min (Leakage current 1mA max.)
Degree of protectionIP67
Connection methodScrew
MaterialPin block: PBT resin
Cover: PBT resin
Contact: Brass
Fixture: Brass/Copper alloy
O-ring: Rubber parts
Insertion durability200 time

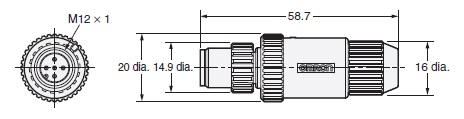

  • Dimensions
