XS2H-D821-AH0-C

Round Water-resistant Connectors (M12 Threads)


Round Water-resistant Connector (M12 Threads), Connector with cables, Plug on one cable end, 8 poles, Straight, Standard cable, 0.3 m

Type Water-resistant Connectors
Application for DC
Number of poles 8 pole
Location of lead output Straight
Fastening method M12 Threads
Cable length 0.3 m

Item list of XS2

  • Ratings/Performance
TypeWater-resistant Connectors
Applicationfor DC
Number of poles8 pole
Plug/socketPlug
Location of lead outputStraight
Fastening methodM12 Threads
Rated voltage36 VDC
Rated current1.5 A
Contact resistance40 mΩ max. (20 mV max, 100 mA max.)
Cable specificationsTypeStandard cable
Outer diameter6 mm dia.
Number of wires8 cores
Cable length0.3 m
Ambient temperature range (Operating)-25 to 70 ℃
Insulation resistance1000 MΩ min. (at 500 VDC)
Dielectric strength1,000 VAC 1 min (Leakage current 1mA max.)
Degree of protectionIP67
MaterialPin block: PBT resin
Cover: Soft PBT resin
Contact: Brass (gold plating)
Fixture: Brass (nickel plated)
Body: Brass (nickel plated)
Nut: Brass (nickel plated)
Insertion durability200 回 min.

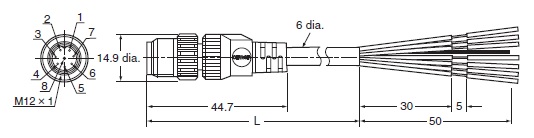

  • Dimensions

Series

Round Water-resistant Connectors (M12 Threads)

XS2
