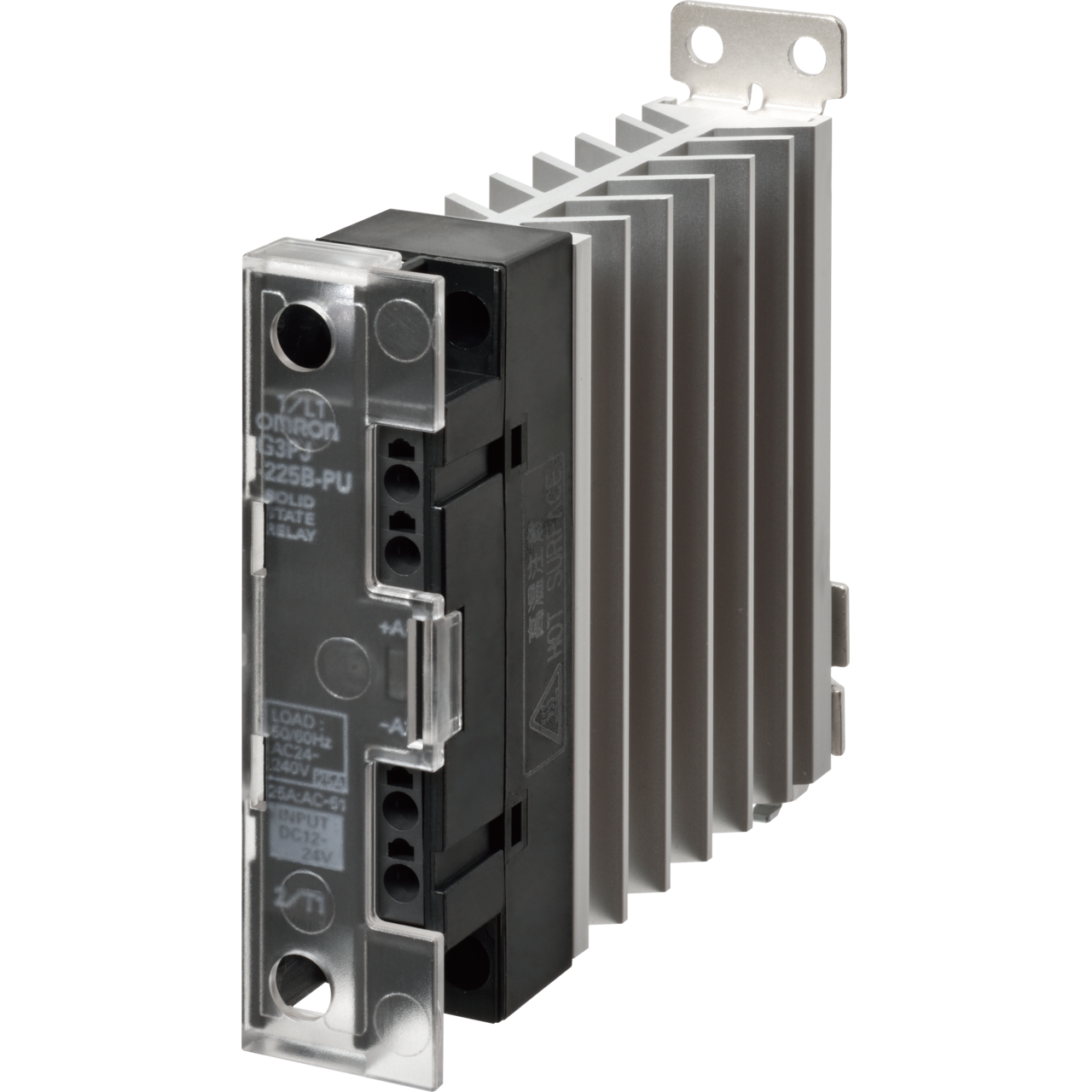

GlobalG3PJ-225B-PU DC12-24
Solid State Relays for Heaters
Solid State Relays for Heaters, Rated: 24 to 240 VAC 25 A, Push-In Plus Terminal Block
| Product classification |
For single-phase heater |
|---|---|
| Zero cross function |
Equipped |
| Operating indicator |
Equipped (orange) |
| Rated voltage |
12 to 24 VDC |
| Rated load voltage |
24 to 240 VAC (50/60 Hz) |
| Load current |
0.1 to 25 A (Close mounting (Three SSRs)) 0.1 to 27 A (Separate mounting) |
| Terminal structure |
Input terminals: Push-In Plus Terminal Block Output terminals: Screw terminal |
- Ratings / Performance
As of May 7, 2025
| Product classification | For single-phase heater | |
|---|---|---|
| Number of phases | Single-phase | |
| Isolation method | Phototriac | |
| Zero cross function | Equipped | |
| Operating indicator | Equipped (orange) | |
| Terminal structure | Input terminals: Push-In Plus Terminal Block Output terminals: Screw terminal | |
| Mounting | DIN track mounting, Screw mounting | |
| Input | Rated voltage | 12 to 24 VDC | Operating voltage range | 9.6 to 30 VDC | Input current | 7 mA max. | Operate voltage | 9.6 V max.DC | Release voltage | 1 V min.DC |
| Output | Rated load voltage | 24 to 240 VAC (50/60 Hz) | Load voltage range | 19 to 264 VAC 50/60 Hz | Load current | 0.1 to 25 A (Close mounting (Three SSRs)) 0.1 to 27 A (Separate mounting) | Inrush current resistivity | 220 AAC (60 Hz 1 cycle) | Permissible I2**t | 1260 A2s |
| Operate time | 1/2 cycle of load power source + 1 ms max. |
|---|---|
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Output ON voltage drop | 1.6 V max. (RMS) |
| Leakage current | 10 mA max. (at 240 VAC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 2500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.35 mm single amplitude (0.7 mm double amplitude) (mounted on DIN track) |
| Shock resistance | 300 m/s2 (DIN Track mounting) |
| Ambient temperature (Operating) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85 % |
| Weight | Approx. 240 g |
As of May 7, 2025

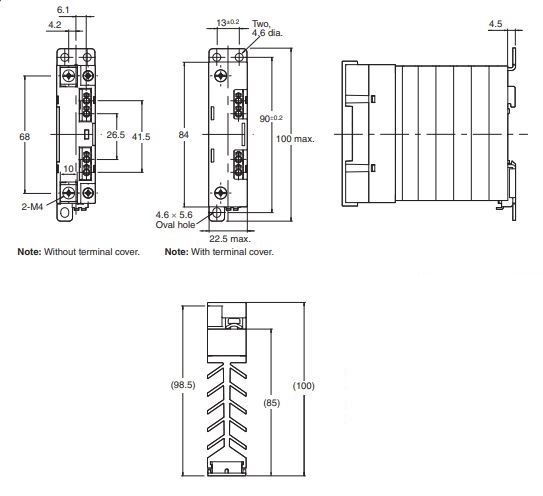

- Outline drawing
As of May 7, 2025
Mounting holes
As of May 7, 2025
- Connection diagra
As of May 7, 2025
Terminal arrangement and internal connection
As of May 7, 2025
- Characteristic chart
As of May 7, 2025
Input Voltage vs. Input Impedance and Input Voltage vs. Input Current
Load current-ambient temperature

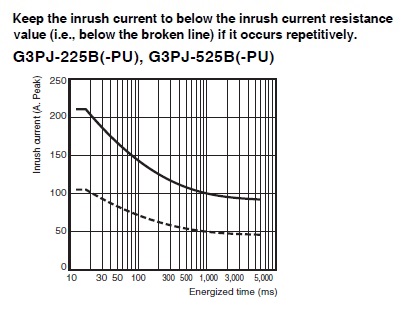

Inrush current resistivity (Non-repetitive)
As of May 7, 2025
