GlobalH7EC-NFV-B
Self-powered Totalizer
Miniature Total Counter, 8 digit, Free voltage input, backlight None, Reset key Equipped, Black
| Digits |
8 digit |
|---|---|
| External connection method |
Screw terminal |
| Mounting method |
Flush mounting |
- Ratings/Specifications
As of November 20, 2024
| Function | Total Counter | |
|---|---|---|
| Counter | Count range | 0 to 99999999 | Max. counting speed | 20 Hz (ON/OFF ratio 1:1) | Minimum input signal width | 20 Hz: 25 ms | Input mode | Increment (UP) | Reset system | External and manual reset |
| Input | Input signal | Count input, Reset | Input method | Free voltage input | Voltage input | Hight level: 24 to 240 VAC/VDC Low level: 0 to 2.4 VAC/VDC |
| Reset time | External reset | 20 ms | Manual reset | 20 ms |
| Display | Display method | LCD | Digits | 8 digit | Character height | 8.6 mm (Black) | Zero suppression | Equipped |
| Key protection | Key protect Switch | |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) | |
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) | |
| Ambient humidity (Operating) | 25 to 85 % | |
| Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC) Between count input terminals and reset terminals: 100 MΩ min. (at 500 VDC) | |
| Dielectric withstand voltage | Between count input terminals and exposed non-current-carrying metal parts: 3700 VAC 50/60 Hz 1 min Between reset terminals and exposed non-current-carrying metal parts: 2200 VAC 50/60 Hz 1 min Between count input terminals and reset terminals: 2200 VAC 50/60 Hz 1 min | |
| Impulse withstand voltage | Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV Between count input terminals and reset terminals: 3 kV | |
| Noise immunity | Between count input terminals: ±1.5 kV Between reset terminals: ±500 V square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) | |
| Static immunity | ±8 kV (malfunction) | |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.15 mm single amplitude each in 3 directions for 10 min | |
| Shock resistance | Destruction: 300 m/s2, 3 times each in 6 directions Malfunction: 200 m/s2, 3 times each in 6 directions | |
| Degree of protection | Case front: IP66, NEMA 4 (indoors), and UL Type 4X (indoors) | |
| External connection method | Screw terminal | |
| Case color | Black (Munsell N1.5) | |
| Weight | Approx. 60 g | |
As of November 20, 2024
- Dimensions
As of November 20, 2024
As of November 20, 2024
- Terminal arrangement
As of November 20, 2024
As of November 20, 2024
- Input connection diagram
As of November 20, 2024

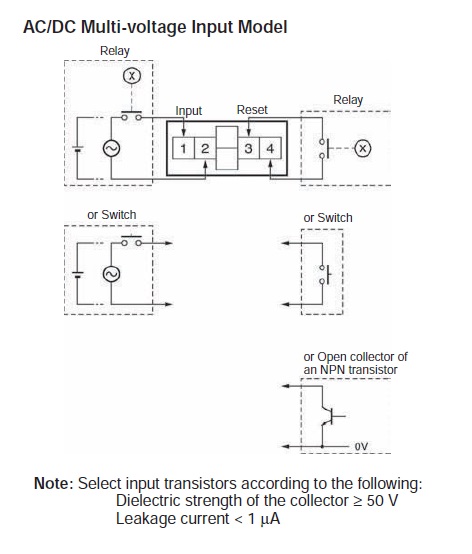

Free voltage input:
