H7ER-N-B

Self-powered Totalizer


Tachometer, 48 x 24 x 53.5 mm, 4 digits, No-voltage input, Transistor output, Reset key, Black

Digits 4 digit
External connection method Screw terminal
Mounting method Flush mounting

Item list of H7E[]-N

  • Ratings/Specifications
FunctionTachometer
TachometerMax. counting speed1 kHz
Minimum input signal width0.5 ms
Count range0 to 9999
Max Display speed1000 s**-1(rps) (When encoder resolution of 1 pulse/rev is used.)
1000 min**-1(rpm) (When encoder resolution of 60 pulse/rev is used.)
InputInput signalCount input
Input methodNo-voltage input
No-voltage input (No-contact input)Short-circuit (ON) impedance: 10 kΩ max.
Residual voltage: 0.5 V max. (Actual performance 1.0 V)
Open circuit impedance: 750 kΩ min.
DisplayDisplay method7-segment transmissive LCD
Digits4 digit
Character height8.6 mm (Black)
Key protectionNot provided
Surrounding air temperatureOperating: -10 to 55℃
Storage: -25 to 65℃
Ambient humidityOperating: 25 to 85%
Insulation resistanceBetween current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC)
Dielectric withstand voltageBetween current carrying terminals and exposed non-current carrying metal parts: 1000 VAC 50/60 Hz 1 min
Impulse withstand voltageBetween current carrying terminals and exposed non-current carrying metal parts: 4.5 kV
Noise immunityBetween count input terminals: ±500 V
square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity±8 kV (malfunction)
Vibration resistanceDestruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 h
Malfunction: 10 to 55 Hz, 0.15 mm single amplitude each in 3 directions for 10 min
Shock resistanceDestruction: 300 m/s**2 , 3 times each in 6 directions
Malfunction: 200 m/s**2 , 3 times each in 6 directions
Degree of protectionCase front: IP66, NEMA 4 (indoors), and UL Type 4X (indoors) (when using the Y92S-32 Waterproof Packing)
External connection methodScrew terminal
Case colorBlack (Munsell N1.5)
AccessoriesFlush mounting adapter, Waterproof rubber packing, Unit label
WeightApprox. 60 g

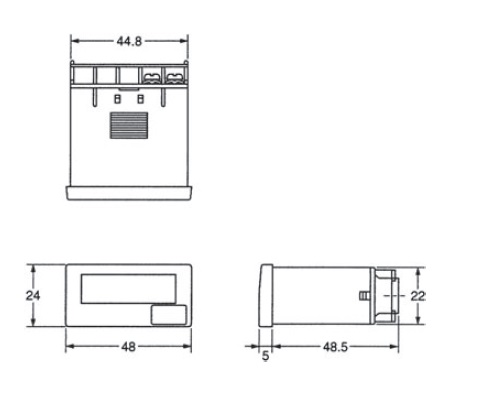

  • Dimensions

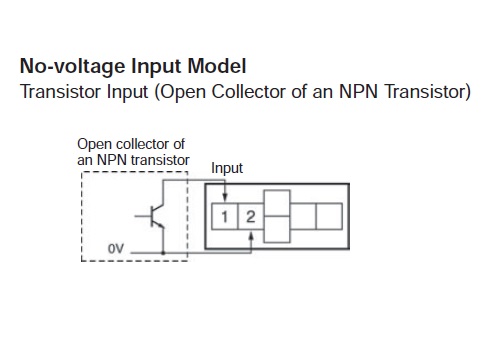

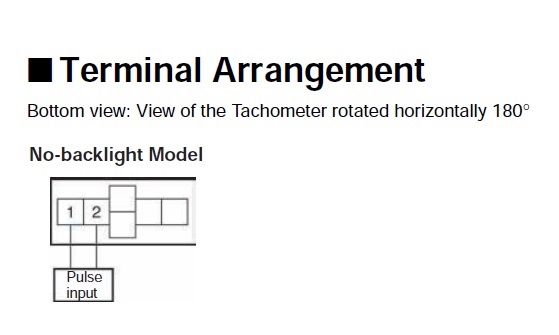

  • Input connection diagram

No-voltage input
