Pushbutton Switch (Cylindrical 30-dia.)

ZAP

Long Service Life with Built-in Z-series Basic Switch

Item list of ZAP

Related Contents

last update: November 6, 2012

(Unit: mm)

Insert one of the following letters into the box ([]) at the end of the model number. Refer to Lineup for color symbols.

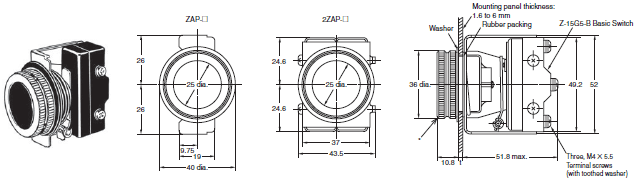

ZAP-[]
2ZAP-[]

ZAP Dimensions 2

* Chromed plating

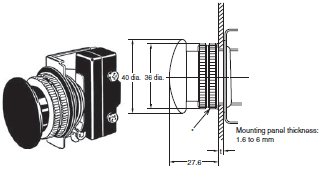

ZAP-1[]
2ZAP-1[]

ZAP Dimensions 3

* Chromed plating

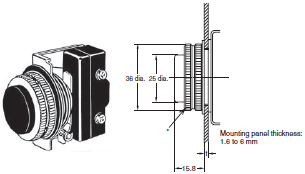

ZAP-2[]
2ZAP-2[]

ZAP Dimensions 4

* Chromed plating

Panel Cutouts

ZAP Dimensions 5
