Global(Unit: mm)
A2A
Subminiature Pushbutton Switch (Cylindrical 10.5-dia.)
High-performance Pushbutton Switch with Built-in Subminiature Basic Switch
Related Contents
- Push Buttons / Indicator Lamps
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: November 12, 2012

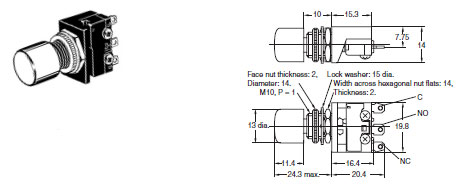

A2A
Note: 1. The Operation Unit can be inserted and removed.
2. Unless specified, a tolerance of ± 0.8 mm applies for all dimensions.
2. Unless specified, a tolerance of ± 0.8 mm applies for all dimensions.
Panel Cutouts
Note: Use a mounting panel thickness of 1 to 4 mm.
last update: November 12, 2012
